INFO

Kategória
Pásové rýpadlá
Značka / model

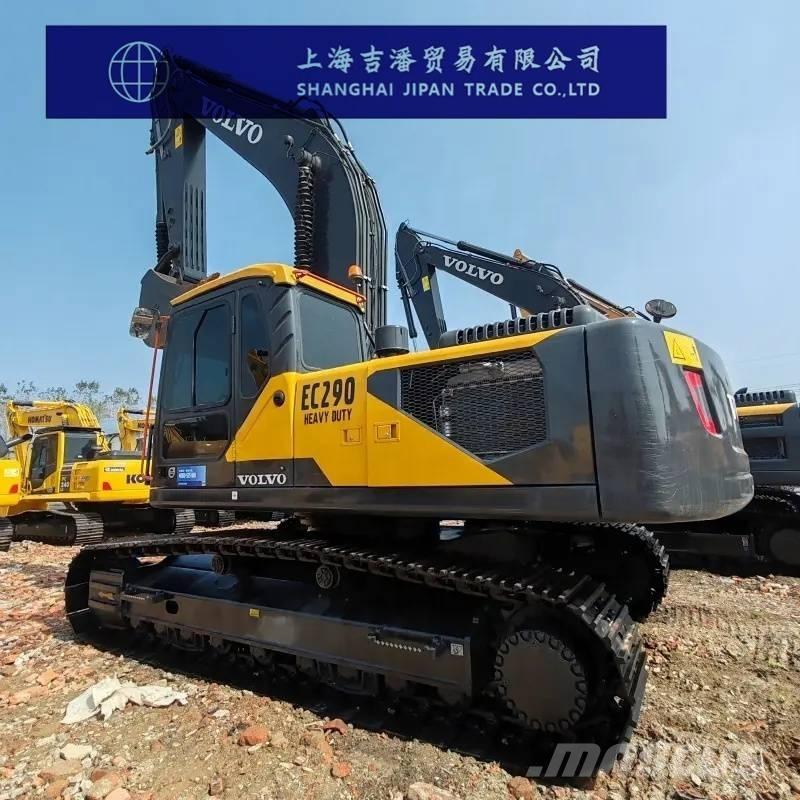

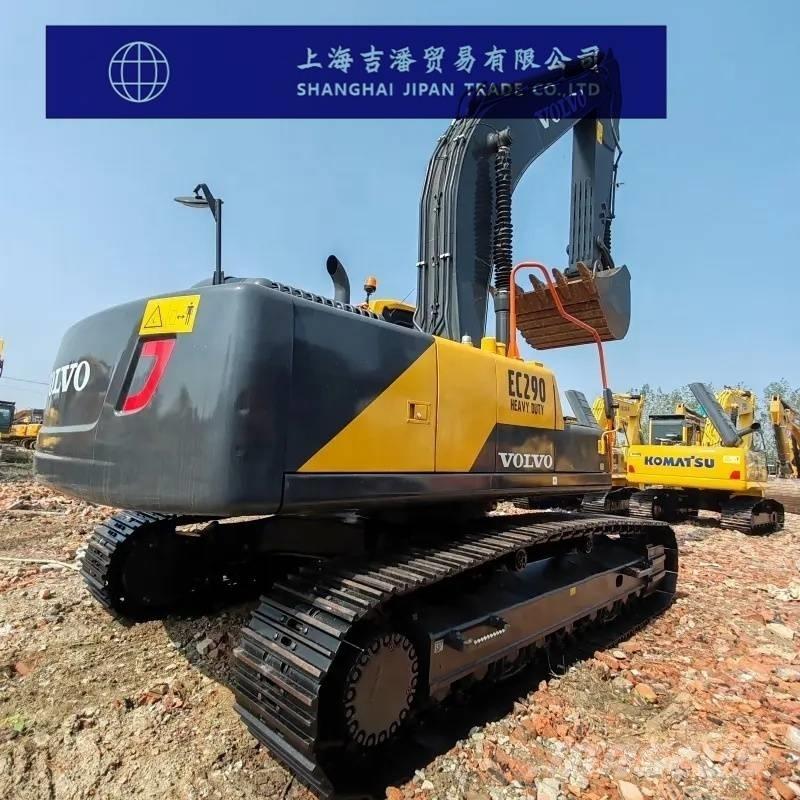

Volvo EC 290
Rok výroby
2023
Hodiny prevádzky
738 h
Krajina
Čína
Všeobecná úroveň
1
2
3
4
5
Mascus ID
B2607C02

INFORMÁCIE O CENE

Zvoliť menu

PODROBNOSTI

Skladové č.
1
Typ pohonu
Naftový
Výrobné číslo
1
Počet predchádzajúcich vlastníkov
1
Posledná revízia
2025-09-25
Stav podvozku
good condition
Motor
Original
Hrubá hmotnosť
29 900 kg
Výkon motora
153 kW (208 hp)
Výrobca motora
Volvo
Registračné číslo
1
Emisná trieda
Stupeň V
Obsah lopaty
1,30 m3
Rozchod kolies
600 mm
Maximálna rýchlosť
5,20 km/h
Transportné rozmery (DxŠxV)
10400 x 3190 x 3290 mm
Pôvodná farba
Yellow&Black
Dipper / stick length
2 250 mm
Info o stave/Garancia
1 year
Vyrobené v štáte
Spojené štáty
Dodacie podmienky
FCA, FOB, CIF, EXW
Certifikácia
EPA, CE
Prídavné zariadenia
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.
Príslušenstvo
bezpečnostný ventil hydraulického okruhu ramena (násady)
bezpečnostný ventil hydraulického okruhu výložníka (monobloku)
Klimatizácia
Predfilter motora
Skeletonová lyžica
maják
špeciálne vybavenie
ovládací joystick
štandardná podkopová lopata
Ďalšie informácie
Volvo EC290BLC Excavator Parameter configuration specification The working weight of the whole machine (kg) is 28500-29900 Bucket capacity (m³) 1.3 Boom Length (mm) 6200 (Heavy Duty Arm) Stick length (mm) 3050 Country of origin: South Korea/Shanghai, China Tonnage (tons) 29 Joint ventures/imports Power: Traditional power Bucket backhoe Joint ventures/imports Power: Traditional power performance Slewing speed (rpm) 10.2 Travel speed (km/h) 3.3/5.2 Climbing ability (%) 70% (35°) Grounding specific pressure (Kpa) 54.1 (at counterweight 5.4 tons) Bucket digging force (kN) 181.4 (standard mode) / 198.4 (afterburner mode) Stick digging force (kN) 127.6 (standard mode) / 139.5 (afterburner mode) Maximum traction (kN) 230.5 dynamical system Engine model VOLVO D7D Rated power (kw/rpm) 153/1900 Displacement (L) 7.1 Number of cylinders (pcs) 6 Bore × stroke (mm) 108×130 Cooling method: Water cooling Working form turbocharging; electronically controlled direct injection; Charged air cooler Hydraulic system Main pump type variable axial piston pump × 2 gear pump The maximum flow rate of the main pump (l/min) is 250×2 19 Traveling hydraulic motor type variable axial piston motor ×2 Slewing Hydraulic Motor Type Axial Plunger Hydraulic Motor with Mechanical Brake Working hydraulic oil circuit (Mpa) 31.4/34.3 Traveling Hydraulic Circuit (Mpa) 34.3 Slewing hydraulic circuit (Mpa) 26.5 Control Hydraulic Circuit (Mpa) 3.9 Boom cylinder - number × bore × stroke (mm) 2-140×1480 Bucket cylinder - number × bore × stroke (mm) 1-150×1745 Bucket cylinder - number × bore × stroke (mm) 1-140×1140 Oil capacity Fuel tank (L) 470 Hydraulic Tank (L) 195 Hydraulic system (L) 400 Engine oil change volume (L) 32 Coolant (L) 44 Body size Total length of transport (mm) 10400 Total width of transport (mm) 3190 Total Transport Height (mm) 3290 (Overall Boom Height) Cab total height (mm) 3030 Counterweight ground clearance (mm) 1145 Track grounding length (mm) 4015 Total track length (mm) 4870 Track shoe width (mm): three-tooth 600/700/800/900; two-tooth 700 Total track width (mm) 3190 Track gauge (mm) 2590 Minimum ground clearance (mm) 480 The minimum turning radius of the front working device (mm) is 4180 Rear end slewing radius (mm) 3050 Scope of work Maximum digging radius (mm) 10690 The maximum excavation radius of the shutdown surface (mm) is 10490 Maximum digging depth (mm) 7320 Maximum digging height (mm) 100

上海吉潘贸易有限公司

上海市松江区车墩镇莘莘路32号3799 201600 上海 Shanghai 上海 Čína
