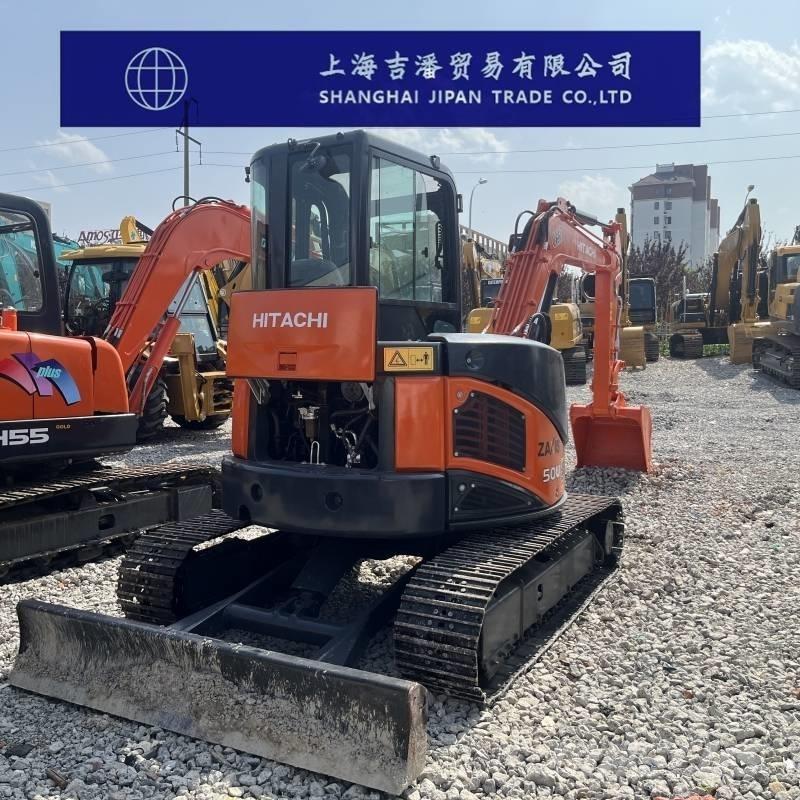

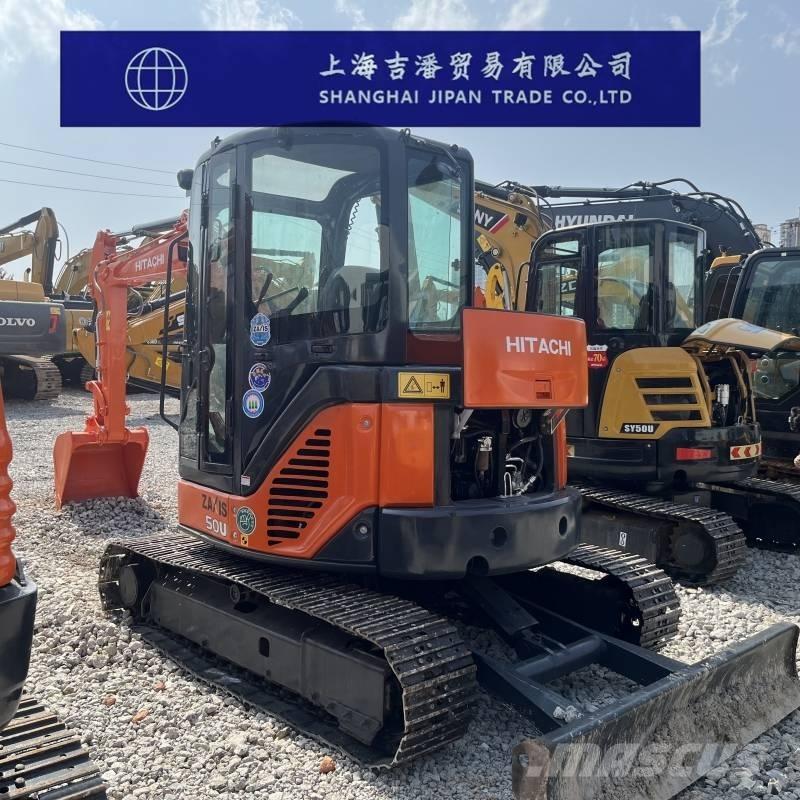

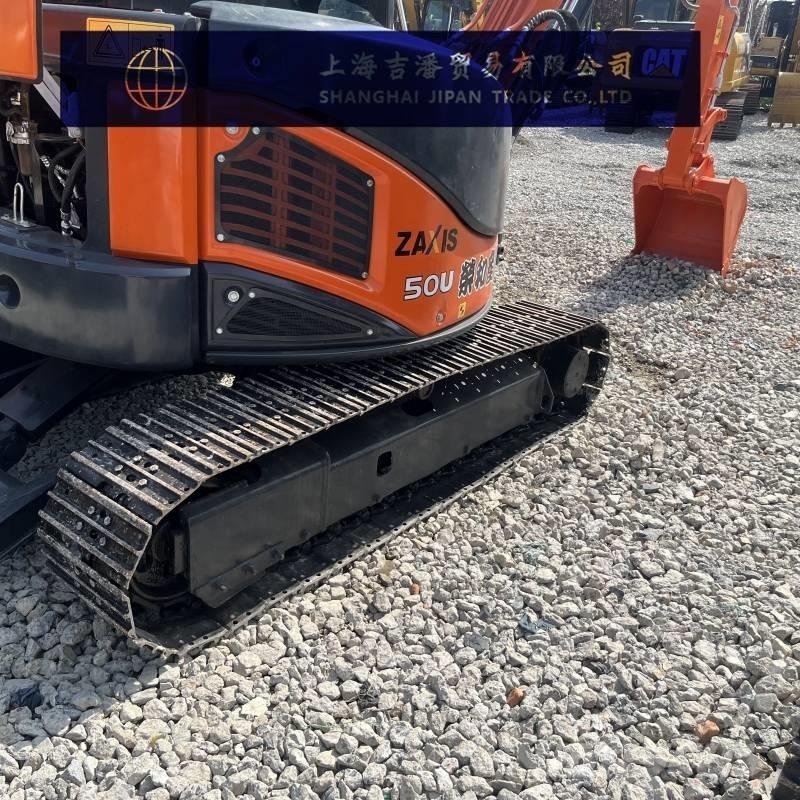

Hitachi ZX 50

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Hitachi ZX50U-3F Excavator Parameter Configuration specification The working weight of the whole machine (kg) is 5170 Bucket capacity (m³) 0.19 Boom length (mm) 2850 Stick length (mm) 1380/1690 Origin: Japan Tonnage (tons) 5 Joint ventures/imports Power: Traditional power Bucket backhoe Joint ventures/imports Power: Traditional power performance Rotation speed (rpm) 9.3 Travel speed (km/h) 2.6/4.2 Climbing ability (%) 58% (30 degrees) Grounding specific pressure (Kpa) 32 Bucket digging force (kN) 36.8 Stick digging force (kN) 24/21 dynamical system Engine model Yanmar 4TNV88 Rated power (kw/rpm) 29.8/2500 Maximum torque (N.m) 138/1500 Displacement (L) 2.2 Number of cylinders (units) 4 Bore × stroke (mm) 88×90 Cooling method: Water cooling Direct injection of the working form Hydraulic system Main pump type variable axial piston pump ×1 Gear pump × 1 The maximum flow rate of the main pump (l/min) is 125 12.5 Working Hydraulic Oil Circuit (Mpa) 24.5 Pilot oil circuit (MPa) 4.1 Pilot pump flow rate (L/min) 12.5 Boom cylinder - number × bore × stroke (mm) 1-95×691 Bucket Cylinder - Number × Bore × Stroke (mm) 1-80×731 Bucket cylinder - number × bore × stroke (mm) 1-75×551 Oil capacity Fuel tank (L) 70 Hydraulic Tank (L) 59 Hydraulic System (L) 90 Engine oil change volume (L) 8.6 Coolant (L) 6.6 Body size Total length of transport (mm) 5460 Total Width of Transport (mm) 2000 Total height of transport (mm) 2600 The total height of the cab (mm) is 2600 Mount width (mm) 2000 Counterweight ground clearance (mm) 605 Track grounding length (mm) 2000 Total track length (mm) 2540 Track shoe width (mm) 400 Total track width (mm) 2000 Track gauge (mm) 1600 Minimum ground clearance (mm) 335 The minimum turning radius of the front working device (mm) is 1790 Rear end turning radius (mm) 1080 Scope of work Maximum digging radius (mm) 6000 Maximum digging depth (mm) 3600 Maximum digging height (mm) 5640 Maximum unloading height (mm) 4000 Maximum vertical digging depth (mm) 2820 Boom slewing angle (left/right°) 80/60 Bulldozer lifting or pushing depth (mm) 425/335
