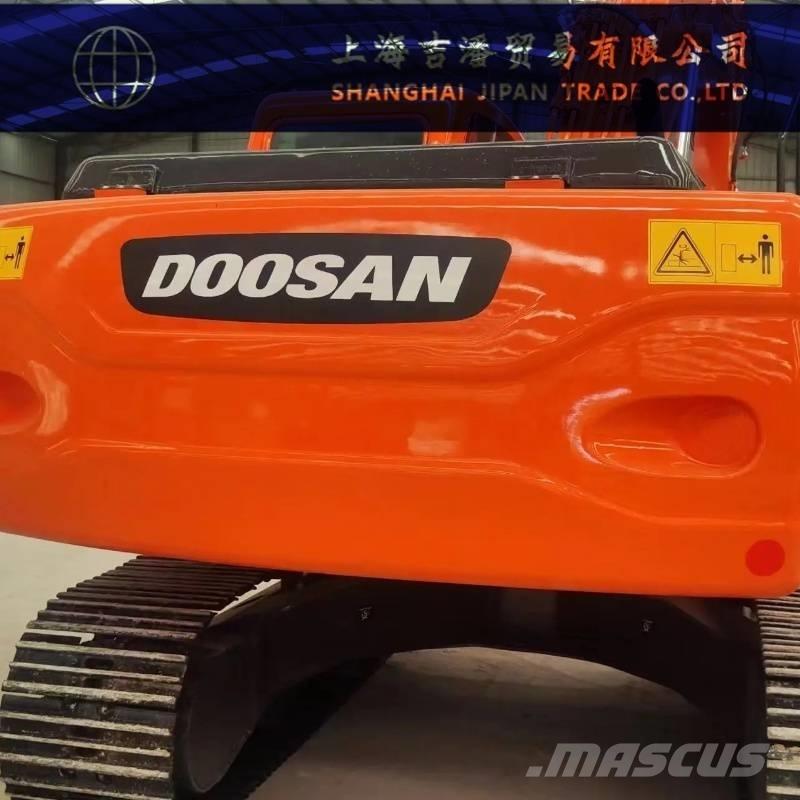

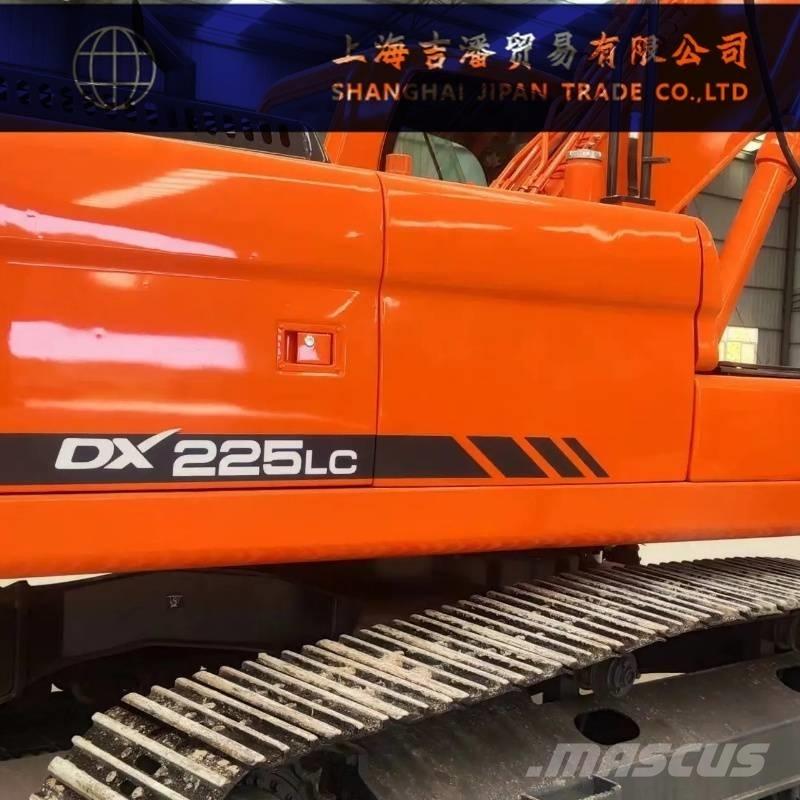

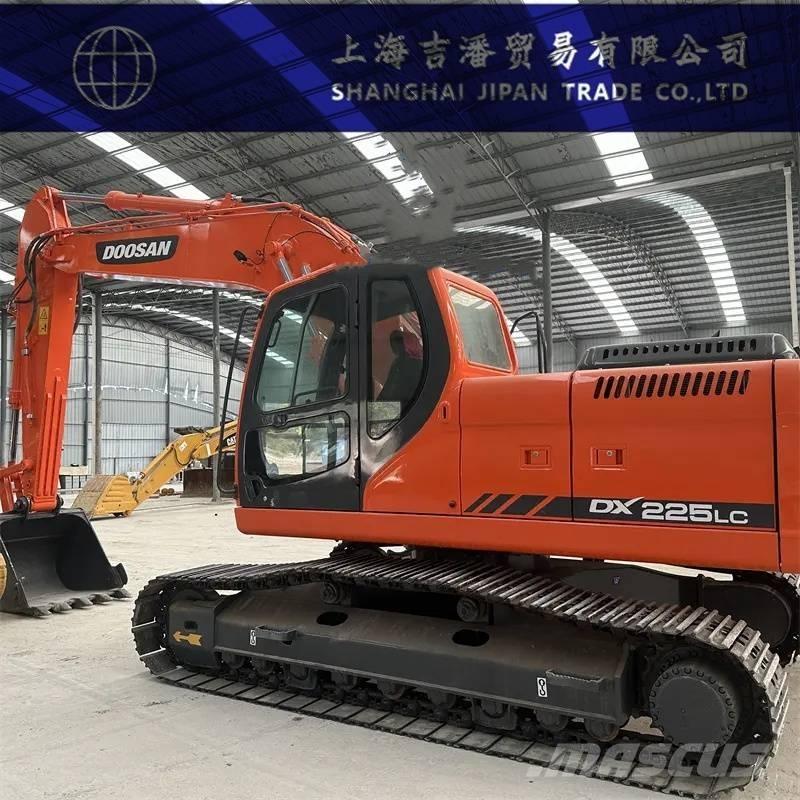

Doosan DX 225 LC SLR

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Diwanlun DX225LC excavator parameter configuration specification The working weight of the whole machine (kg) is 21500 Bucket capacity (m³) 1.05 Boom length (mm) 5700 Stick Length (mm) 2900 (2400, 3500 Optional) Tonnage (tons) 22 Power: Traditional power Bucket backhoe Joint ventures/imports Power: Traditional power performance Grounding specific pressure (Kpa) 0.45 Rotational speed (rpm) 11 Travel speed (km/h) 3.0/5.5 Climbing ability (%) 35 degrees Bucket digging force (kN) 136.2 (144.1) Bucket digging force (kN) 102.9 (116.6/94.1) dynamical system Engine model: Doosan DL06 Rated power (kw/rpm) 157/1900 Cooling method: Water cooling Hydraulic system Main pump type variable axial column race pump × 2 gear pump Main overflow set pressure (Mpa) 330 The maximum flow rate of the main pump (l/min) is 215×2 Slewing hydraulic circuit (Mpa) 281 Oil capacity Fuel tank (L) 400 Body size Total length of transport (mm) 9510 Total width of transport (mm) 2990 Total height of transport (mm) 3030 The total height of the cab (mm) is 3000 Counterweight ground clearance (mm) 1105 Track grounding length (mm) 3645 Total track length (mm) 4440 Track shoe width (mm) 600 Total track width (mm) 2990 Track gauge (mm) 2390 Minimum ground clearance (mm) 480 Rear end slewing radius (mm )2750 Scope of work Max. Digging Radius (mm) 9910 (9580/10445) Maximum Excavation Radius of Shutdown Surface(mm)9735(9400/10230) Maximum digging depth (mm) 6630 (6125/7230) Maximum Digging Height (mm) 9660 (9825/9870) Maximum unloading height (mm) 6810 (6885/7020) Maximum vertical digging depth (mm) 6045 (6035/6560) Maximum Effective Digging Depth (mm)6445(5930/7070) Bulldozer shovel lifting or pushing depth (mm) without dozer plate
