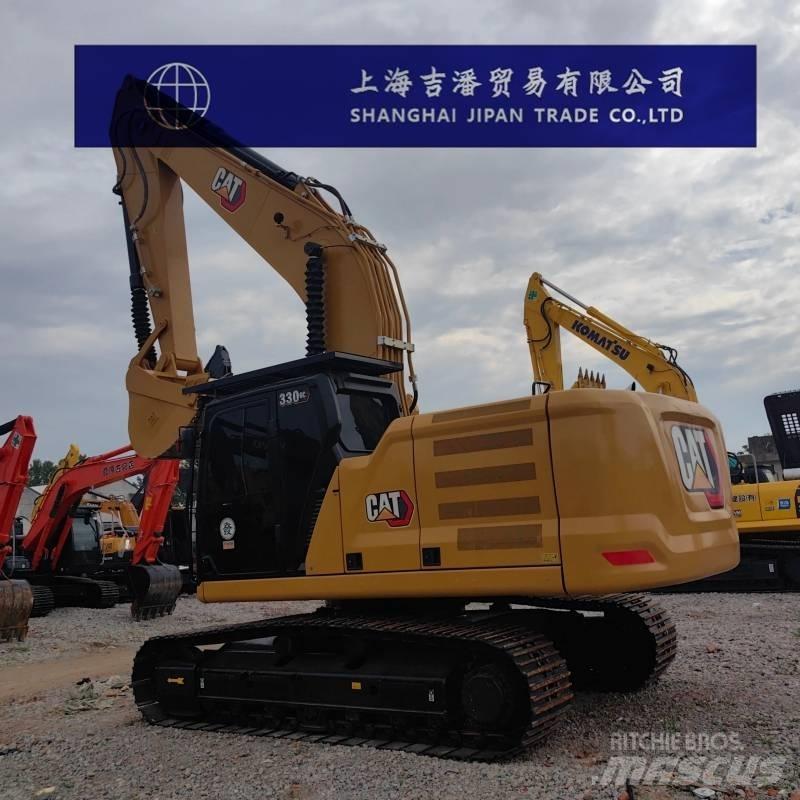

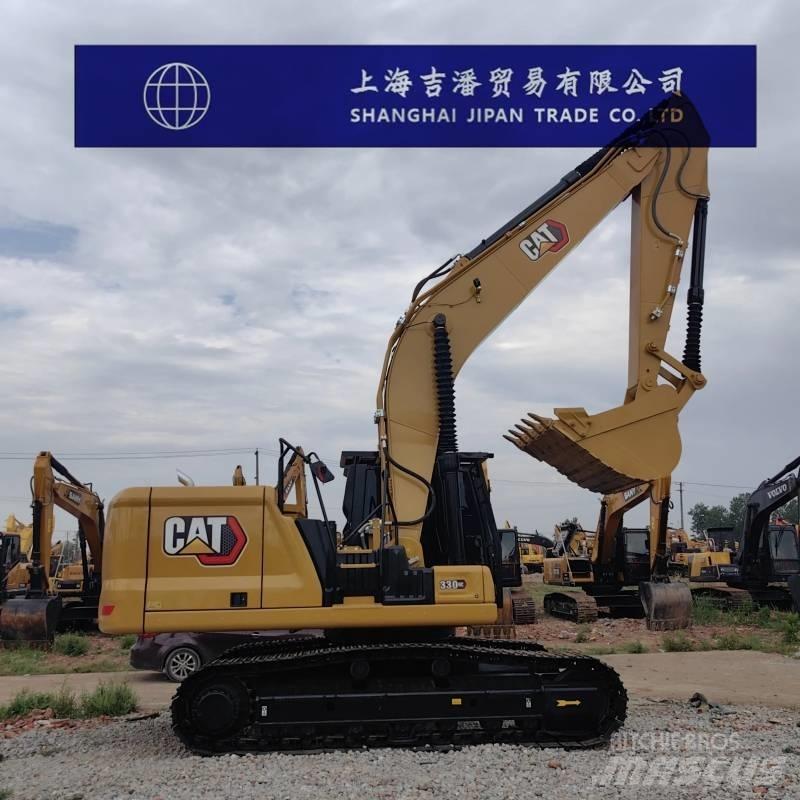

CAT 330 GC
Cena bez DPH
Tlač
INFO
Kategória
Pásové rýpadlá
Značka / model
CAT 330 GC
Rok výroby
2023
Hodiny prevádzky
600 h
Krajina
Čína
Všeobecná úroveň
1
2
3
4
5
Mascus ID
7B4A0CF8
INFORMÁCIE O CENE
Zvoliť menu
PODROBNOSTI
Skladové č.
1
Typ pohonu
Naftový
Výrobné číslo
1
Počet predchádzajúcich vlastníkov
1
Posledná revízia
2025-06-30
Stav podvozku
Good Condition
Motor
Original
Hrubá hmotnosť
30 400 kg
Výkon motora
151 kW (205 hp)
Výrobca motora
Original
Registračné číslo
1
Emisná trieda
Stupeň V
Obsah lopaty
1,60 m3
Rozchod kolies
600 mm
Výkon pomocnej hydrauliky
560 l/min
Maximálna rýchlosť
5,50 km/h
Transportné rozmery (DxŠxV)
10420 x 3190 x 3050 mm
Pôvodná farba
Original
Dipper / stick length
3 200 mm
Info o stave/Garancia
1 Year
Vyrobené v štáte
Japonsko
Dodacie podmienky
FCA, FOB, CIF, EXW
Certifikácia
EPA, CE
Prídavné zariadenia
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Príslušenstvo
bezpečnostný ventil hydraulického okruhu ramena (násady)
bezpečnostný ventil hydraulického okruhu výložníka (monobloku)
Drôtená ochrana proti vetvičkám
Klimatizácia
Prídavná hydraulika
Predfilter motora
Skeletonová lyžica
maják
naftové kúrenie
ovládací joystick
štandardná podkopová lopata
Cable bucket
svahovacia lyžica
Ďalšie informácie
Specification
Power: Fuel
Joint venture/import by manufacturers
Bucket backhoe
Tonnage (tons)30
The overall working weight of the machine (kg) is 30,400
Bucket capacity (m³)1.6
Boom length (mm)6.15
The length of the boom (mm) is 3.2
Performance
Rotational speed (rpm) : 11.5
The rotary torque (Nm) is 105k
Bucket digging force (kN)179
The digging force of the bucket arm (kN) is 126
Power system
Engine model: Cat® C7.1
Rated power (kw/rpm)151/2200
Displacement (L)7.01
Cylinder diameter × stroke (mm) : 105*135
Hydraulic system
The maximum flow rate of the main pump (l/min) is 560
Working hydraulic circuit (Mpa)35
Walking hydraulic circuit (Mpa)35
Rotary hydraulic circuit (Mpa)28.4
Oil capacity
Fuel tank (L)474
Hydraulic oil tank (L)147
Hydraulic System (L)310
Engine oil change volume (L) : 25
Coolant (L)25
Main body size
Total transportation length (mm) : 10420
The total transportation width (mm) is 3190
The total transportation height (mm) is 3050
The total length of the tracks (mm) is 4850
Track plate width (mm)600/800
Track gauge (mm) : 2590
The ground clearance of counterweights (mm) is 1110
Minimum ground clearance (mm) : 490
The center distance of the idler wheels (mm) is 3990
Rear end turning radius (mm) : 3130
Scope of work
Maximum excavation radius (mm) : 10,690
Maximum excavation depth (mm) : 7260
Maximum excavation height (mm) : 9980
Maximum unloading height (mm) : 6930
Maximum vertical excavation depth (mm) : 6030
