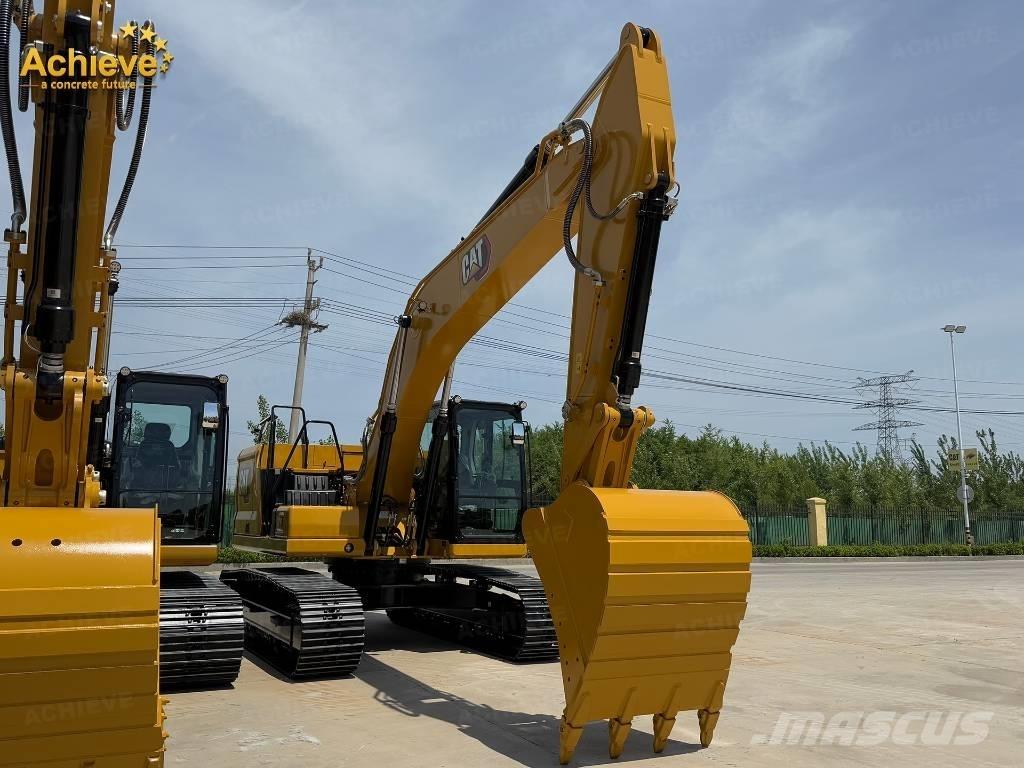

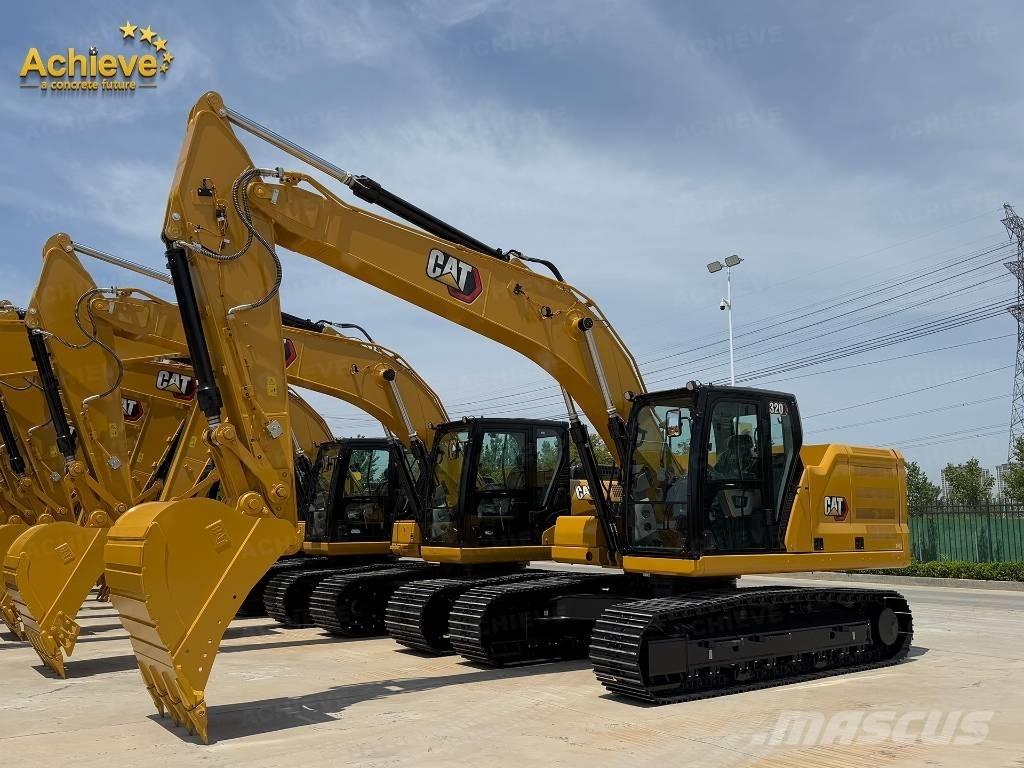

CAT 320

Medium Excavators 320 - Tier 4 / Stage V Net Power - ISO 9249 128.5 kW Operating Weight 22600 kg Maximum Digging Depth 6720 mm Overview Moving the Standard Higher The Cat® 320 raises the bar for efficiency and fuel economy in this size class. With an equipment line full of standard factory-equipped technology, a cab focused on operator comfort, plus low fuel and maintenance costs, the 320 will help set a new pace for productivity and profit in your operation. Benefits Low Fuel Consumption A precise combination of low engine speed and a large hydraulic pump help burn less fuel, delivering top performance. Lower Maintenance Costs Extended and synchronized maintenance intervals help you get more done at a lower cost compared to the 320F. High Operating Efficiency Offering standard factory-equipped technology to help improve operation output, including Cat Grade with 2D, Grade with Assist and Payload. Low CO2 Emissions The 320 emits lower CO2 emissions compared to the previous 320F. Engine Net Power - ISO 9249 128.5 kW Net Power - ISO 9249 (DIN) 175 hp (metric) Engine Model Cat® C4.4 Engine Power - ISO 14396 129.4 kW Engine Power - ISO 14396 (DIN) 176 hp (metric) Bore 105 mm Stroke 127 mm Displacement 4.4 l Biodiesel Capability Up to B20¹ Emissions Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards. Note (1) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. Note (2) ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. Weights Operating Weight 22600 kg Note Reach boom, R2.9 (9'6") stick, Heavy Duty (HD) 1.19 m³ (1.56 yd³) bucket 790 mm (31") triple grouser shoes, 4200 kg (10,400 lb) counterweight. Working Ranges and Forces Maximum Digging Depth 6720 mm Boom Reach 5.7 m (18'8") Stick Reach 2.9 m (9'6") Bucket 1.19 m ³ (1.56 yd³) Maximum Reach at Ground Level 9860 mm Maximum Cutting Height 9370 mm Maximum Loading Height 6490 mm Minimum Loading Height 2170 mm Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 6550 mm Maximum Vertical Wall Digging Depth 5190 mm Bucket Digging Force - ISO 150 kN Stick Digging Force - ISO 106 kN Hydraulic System Main System - Maximum Flow 429 l/min (113 gal/min) Maximum Pressure - Equipment 35000 kPa Maximum Pressure - Equipment - Lift Mode 38000 kPa Maximum Pressure - Travel 34300 kPa Maximum Pressure - Swing 27500 kPa Swing Mechanism Swing Speed 11.25 r/min Note (1) For CE-marked machine default value may be set lower. Maximum Swing Torque 82 kN·m Service Refill Capacities Fuel Tank Capacity 345 l Cooling System 25 l Engine Oil 15 l Swing Drive 6 l Final Drive - Each 4 l Hydraulic System - Including Tank 234 l Hydraulic Tank 115 l DEF Tank 39 l Dimensions Boom Reach 5.7 m (18'8") Stick Reach 2.9 m (9'6") Bucket 1.19 m ³ (1.56 yd³) Shipping Height - Top of Cab 2960 mm Handrail Height 2950 mm Shipping Length 9530 mm Tail Swing Radius 2830 mm Counterweight Clearance 1050 mm Ground Clearance 470 mm Track Length 4450 mm Length to Center of Rollers 3650 mm Track Gauge 2380 mm Transport Width 2980 mm Air Conditioning Sy
