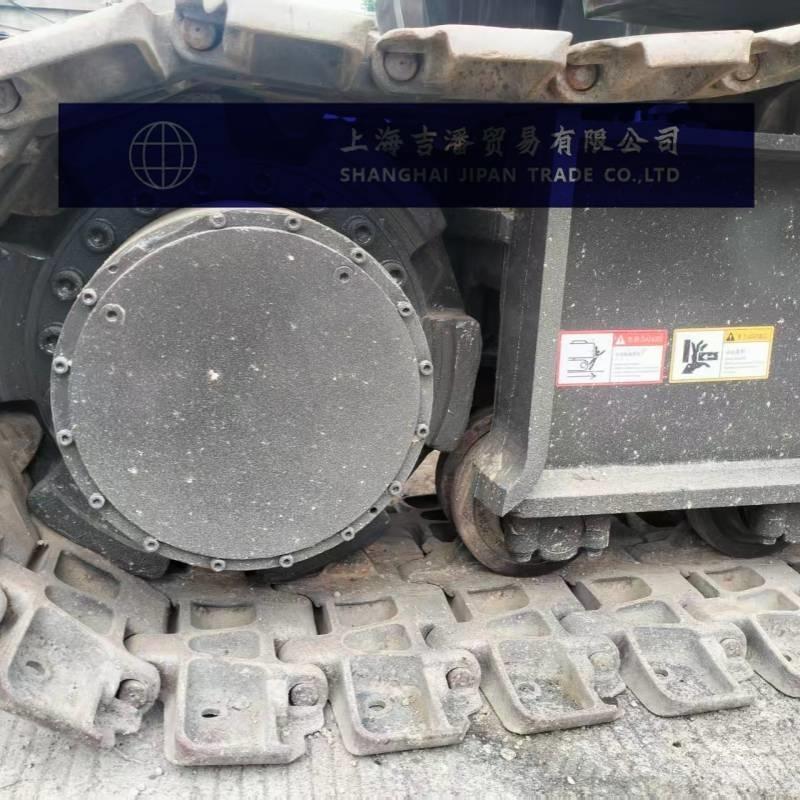

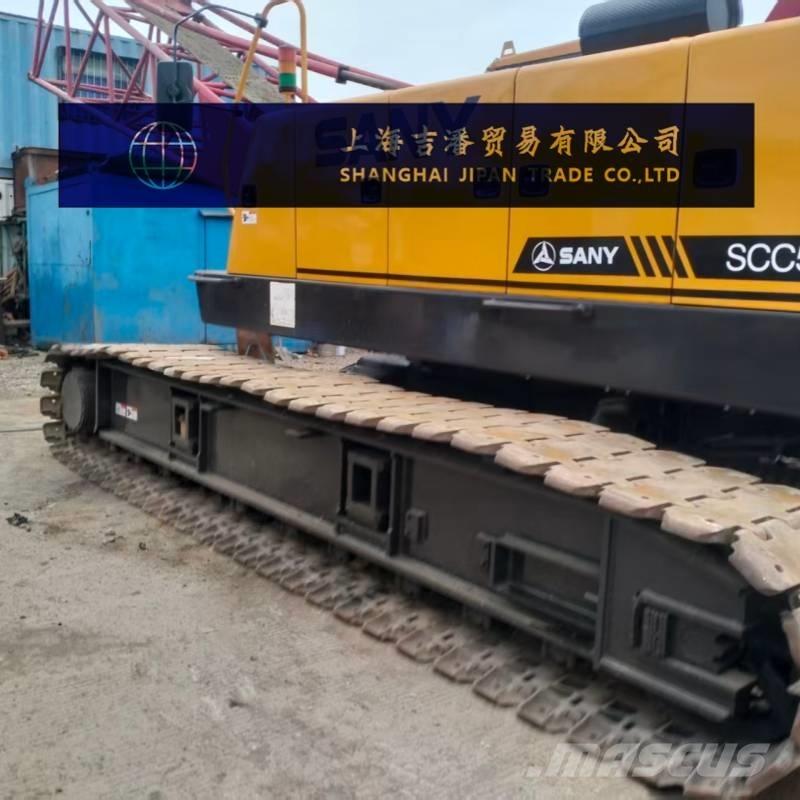

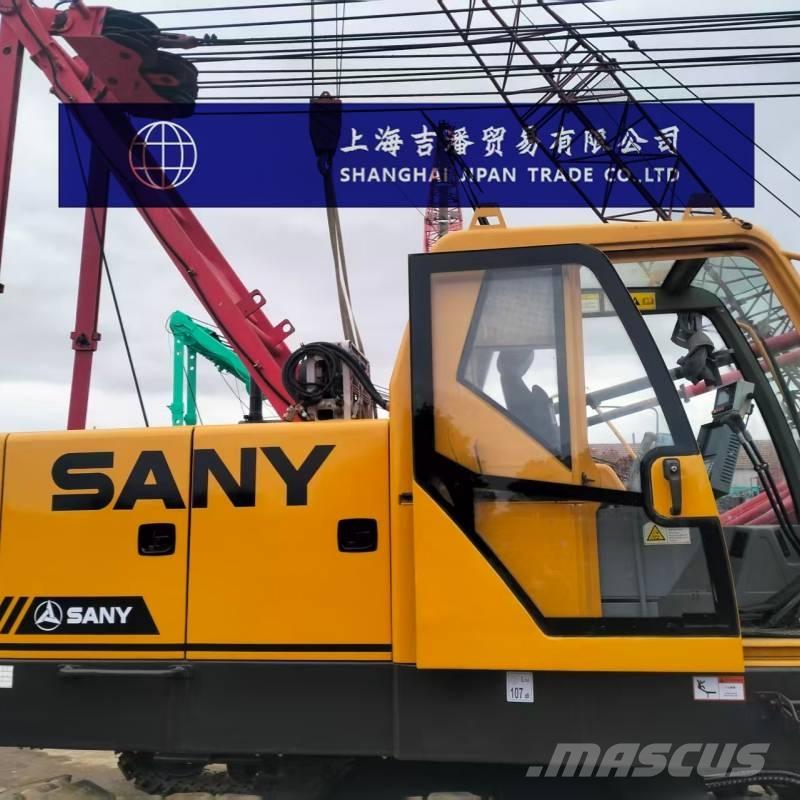

Sany SCC 550 C

Fly Jib Hook Counter Weight We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method:Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.

Basic parameters Lifting performance: It belongs to medium-tonnage crawler cranes ranging from 100t to 2000t. Working weight: approximately 48.8 tons (without mast and hoist),64.6 tons (with mast and hoist). Overall dimensions:Full width 5100mm,full height 3200mm. Power system parameters Engine model:QSB5.9-C210. Displacement:5.9L. Rated power:154kW/2200rpm Maximum torque:820N·m/1400rpm. Lifting performance parameters Maximum lifting moment:2359t·m. The maximum lifting capacity of the main boom:55t×3.7m=203t·m. Main arm length:20-92 meters. Main arm luffing Angle:30°-85° Working speed parameter Maximum single-rope speed of the hoist:125m/min. Maximum rotational speed:2.5r/min. Parameters of the hydraulic system Main pump: A large-displacement open variable piston pump is adopted. Gear pump: Double gear pump, used in rotary, cooling and control circuits. System pressure: The maximum pressure of the main and auxiliary winches and the traveling system is 32MPa, that of the slewing system is 20MPa, and that of the control system is 4.5MPa. Hydraulic oil tank capacity:460L. Chassis and walking parameters Track extension function:The maximum transportation width of the entire machine is 3.36 meters. Walking speed:0-1.5km/h (reference value). Climbing ability: approximately 40% (reference value). Parameters of safety devices Standard configuration: Functions such as off-machine stop action and emergency electrical control, with complete safety and monitoring devices.
