Sany SCA2600A

Cena bez DPH

Compnay LOGO
Images1

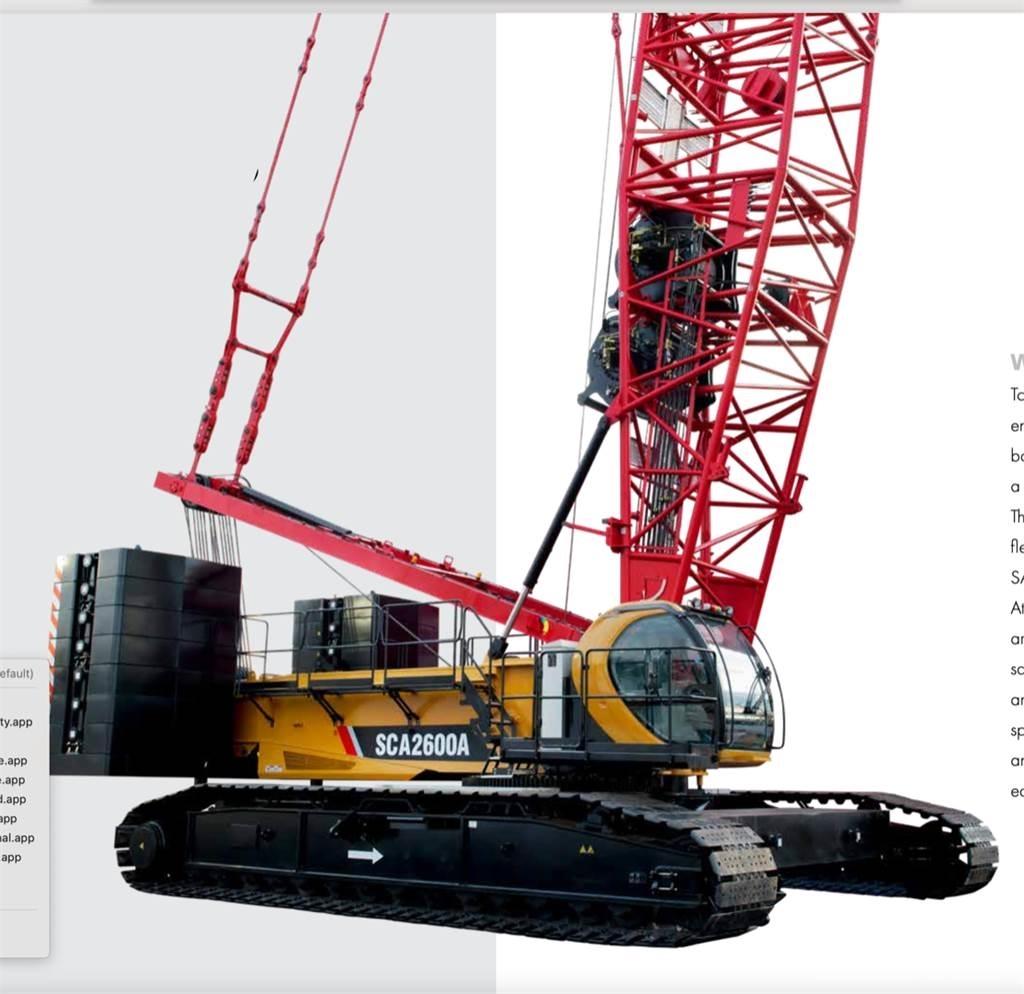

Sany SCA2600A Pásové žeriavy
FavoriteObľúbené
sharePodiel
Save searchUložiť vyhľadávanie
Tlač

INFO

Kategória
Pásové žeriavy
Značka / model
Sany SCA2600A
Rok výroby
2021
Stav
Nové/nepoužité
Umiestnenie stroja
Texas, USA, Texas
Krajina
Spojené štáty
Všeobecná úroveň
1
2
3
4
5
Mascus ID
B8E42C52

INFORMÁCIE O CENE

Zvoliť menu

PODROBNOSTI

Skladové č.
530
Zdvíhacia kapacita
286 000 kg
Výška zdvihu
9 205 cm
Ďalšie informácie
2021 Sany SCA2600A, 286 ton, Lattice Boom Crawler Crane; CranesList ID: 530, 65' 7" Basic Tubular Chord Boom - 301’-10” when employing the full counterweight package, Maximum boom length consists of: 34’-0” (10.35m) Inner (Basic) 9’-9” (3m) Center (Basic) 19’-8” (6m) Center 39’-4” (12m) Center 21’-10” (6.65m) Transition/Boom Head (Basic) 1 1 2 5 1 Single sheave extension for boom, 137’ 9” Fixed Jib, 206’ 8” Luffing Jib,  Main and Auxiliary Winch with 28mm Diameter Wire Rope, Third Drum with 20mm Diameter Wire Rope, Drum Rotation Indicator, Mechanical Boom Angle Indicator, Free Fall On Main And Auxiliary Drums,  Load Moment Indicator (LMI) monitors the main boom and upper boom point, 16 Metric Ton Overhaul Weight/Hook, 260 Metric Ton Hook Block, 160 Metric Ton Block, 100 Metric Ton Hook Block, 50 Metric Ton Hook Block, COUNTERWEIGHT: Standard upper counterweight consists of one base section weighing 35,200# with 14 overlays each weighing 13,200# providing a standard upper counterweight of 220,000#.  The standard lower counterweight package consists of two 50,600# carbody counterweights. The upper and lower packages provide a total available counterweight of 321,200#. Wireless camera attaches to any boom tip being used for continuous visibility of the hook, OPERATOR’S CAB: The spacious operator’s cab is isolated from the machinery deck in order to provide a quiet and comfortable environment.  The cab is fully enclosed.  It features tinted safety glass windows on all sides in order to provide maximum vision of the working area.  The front windshield includes wiper/washers.  A full instrumentation package provides all the necessary gauges for engine performance monitoring. The 25 degree cab tilt-back feature along with the ergonomically designed controls reduce operator fatigue and increase productivity. Joystick crane controls, Adjustable deluxe operator seat are included,  Air Conditioning and Heater, Cummins QSG12-C400, 450 HP Turbocharged/Intercooled Diesel Engine (Tier 4 Final Compliant), CRAWLER SIDE FRAMES: Overall crawler length 30’, Crawler shoe width 47”, Width side frame extended 26’-2”  Crawlers have high steel alloy tumbler yokes and rigid fabricated structures.  The side frames are removable for transportation, Service, operation, transportation, assembly & disassembly manuals are in English only, 3-year 3,000-hour Factory Warranty, CRANE IS IN STOCK, Certified. ... IN TEXAS! Zobraziť ďalšie

Craneslist

3350 E. 7th ST #512 90804 Long Beach California Spojené štáty
