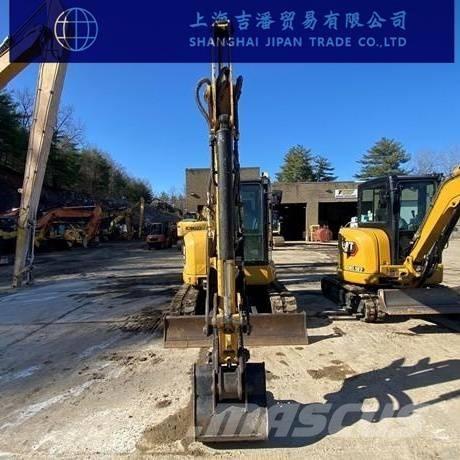

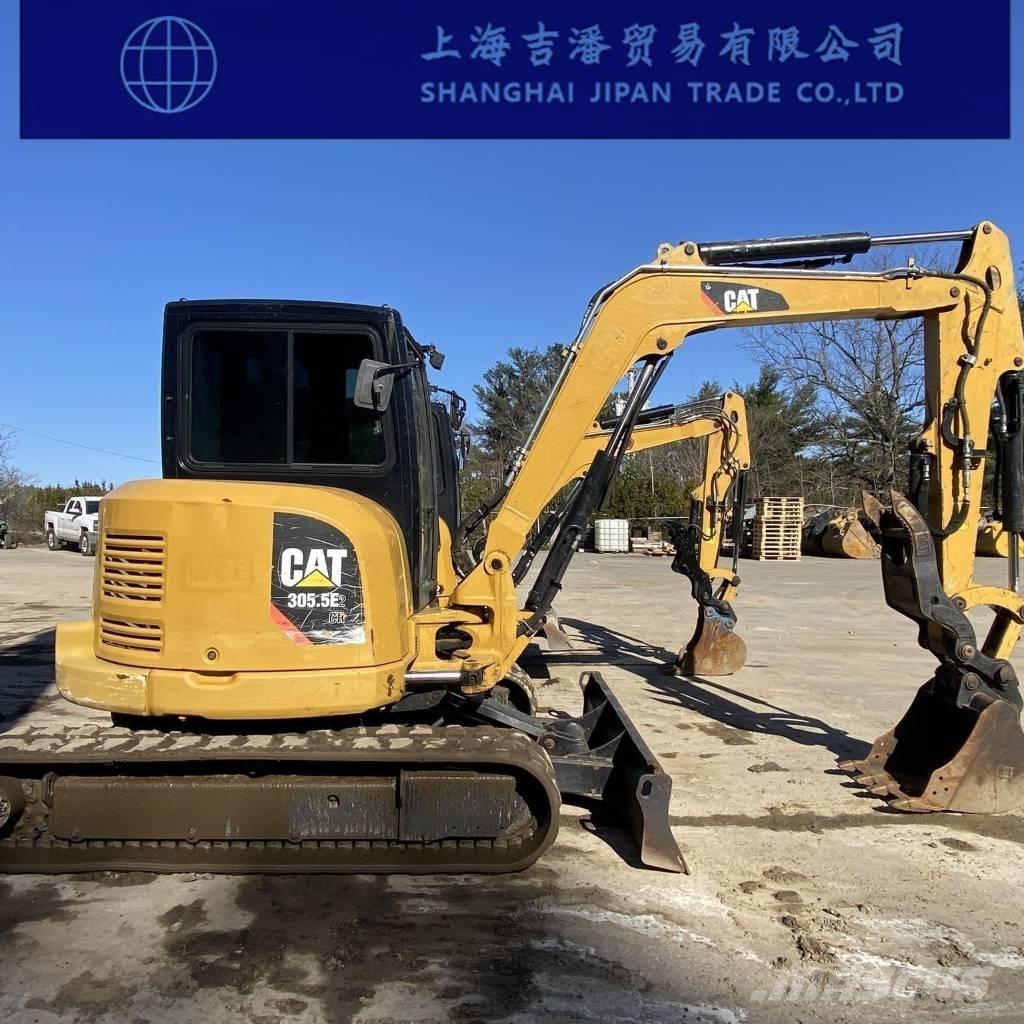

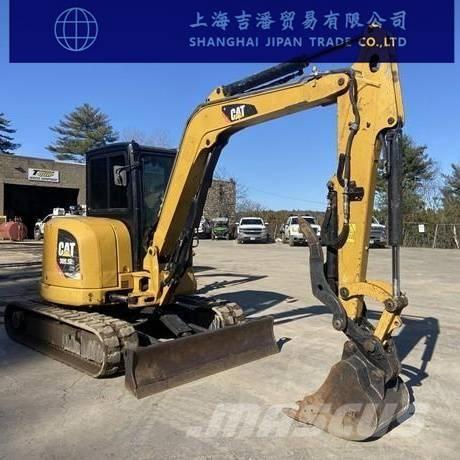

CAT 305.5 E

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Caterpillar CAT®305.5E2 Small Hydraulic Excavator Parameter Configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 5 The working weight of the whole machine (kg) is 5400 Bucket width (mm) 766.0 Bucket capacity (m³) 0.22 Boom length (mm) 3200.0 Stick length (mm) 1500.0 performance Rotation speed (rpm) 10.5 min-1 Rotational torque (Nm) 13.9 N·m Travel speed (km/h) 4.3/2.8 Climbing ability (%) 50 Bucket digging force (kN) 35.0 Stick digging force (kN) 27.2 Maximum traction (kN) 40.2 dynamical system Engine model Cat C2.4 DI Rated power (kw/rpm) 34.1 Displacement (L) 2.4 Bore × stroke (mm) 87.0*102.4 Hydraulic system The main pump type is equipped with a load-sensing hydraulic system with a variable displacement piston pump The maximum flow rate of the main pump (l/min) is 140.0 Oil capacity Fuel tank (L) 78 Hydraulic Tank (L) 58 Hydraulic system (L) 85 Engine oil change (L) 9.5 Coolant (L) 9.8 Body size Total length of transport (mm) 5765.0 Total Transport Width (mm) 1950.0 Total height of transport (mm) 2540.0 Overall track length (mm) 2440.0 Track shoe width (mm) 400.0 Track gauge (mm) 1550.0 Minimum ground clearance (mm) 628.0 The center spacing of the track roller (mm) is 1920.0 The rear end slewing radius (mm) is 1580.0 Scope of work Maximum digging radius (mm) 5955.0 The maximum excavation radius of the stopping surface (mm) is 5830.0 Maximum digging depth (mm) 3720.0 Maximum digging height (mm) 5460.0 Maximum unloading height (mm) 3835.0 Maximum vertical digging depth (mm) 2210.0 Width × height of bulldozer plate (mm) 1950.0*360.0 Dozer shovel lifting or pushing depth (mm) 365.0/480.0
