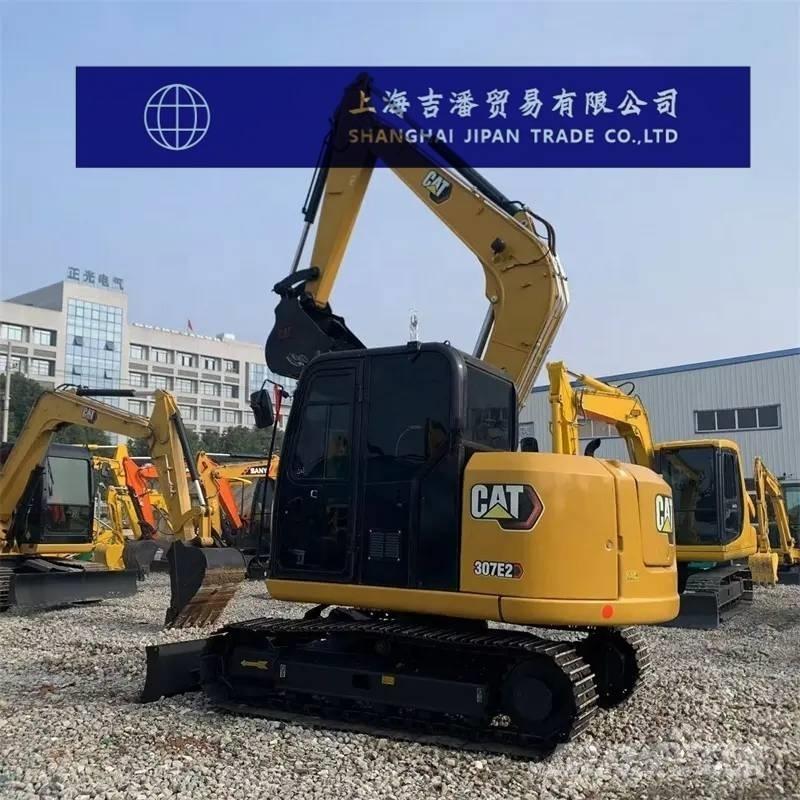

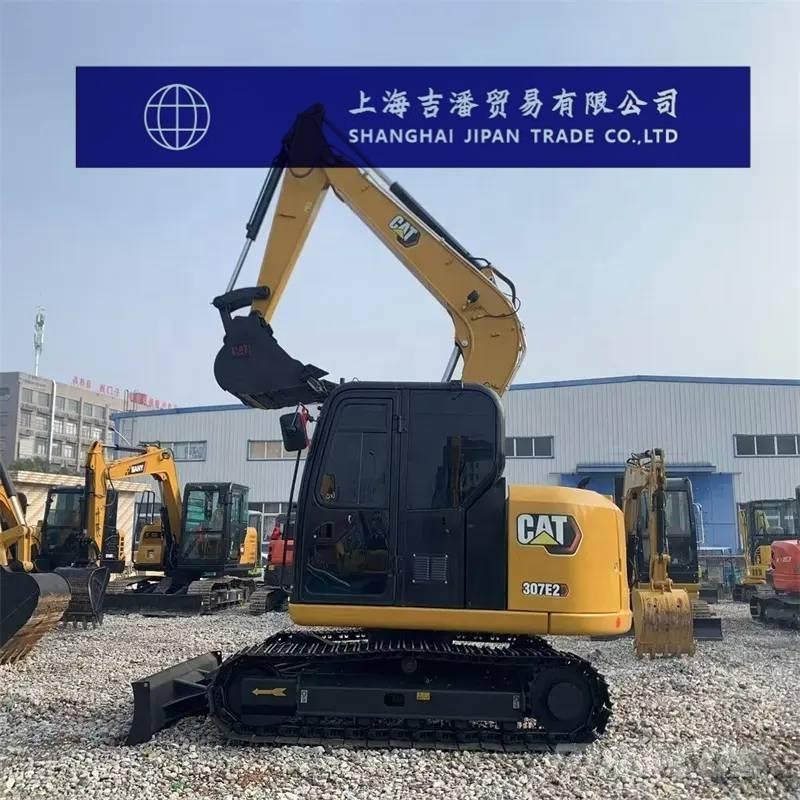

CAT 307 E

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method:Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.

Parameter configuration of Cat 307E Excavator Specification Tonnage (tons):7 The overall working weight of the machine (kg) is 6900 Bucket capacity (m³):0.33 Boom length (mm):3700 The length of the bucket pole (mm) is 1665 Performance Rotational speed (rpm):10.8 Rotational torque (Nm):16.3 Walking speed (km/h):High:5.1/Low:3.2 Climbing ability:60% The digging force of the bucket (kN) is 50.6 The digging force of the boom (kN) is 37.1 Maximum traction force (kN)56.9 Power system Engine model Cat C2.6DI Turbo Rated power (kw/rpm)41.5 Displacement (L)2.6 Bore × stroke (mm)87×110 Hydraulic system The main pump type is a load-sensing hydraulic system equipped with a variable displacement piston pump The maximum flow rate of the main pump (l/min) is 147 Walking hydraulic circuit (Mpa)28 Rotary hydraulic circuit (Mpa)24 The main overflow set pressure (Mpa) is 28 Oil capacity Fuel tank (L)135.0 Hydraulic oil tank (L)51.0 Hydraulic System (L)94.0 Engine oil change rate (L)10.2 Coolant (L)11.9 Main body size Total transportation length (mm):6070 Total transportation width (mm)2300 The total height of the cab (mm) is 2540 Track grounding length (mm)2120 The total length of the track (mm) is 2760 Track plate width (mm)450 Minimum ground clearance (mm)370 Counterweight ground clearance (mm)775 The rear end rotation radius (mm) is 1750 Scope of work Maximum excavation radius (mm):6300 The maximum excavation radius of the shutdown surface is 6180 mm Maximum excavation depth (mm):4070 Maximum excavation height (mm):7240 Maximum unloading height (mm):5190 The width × height (mm) of the push board is 2300×450 The lifting or pushing depth of the bulldozer blade (mm) is 390/350
