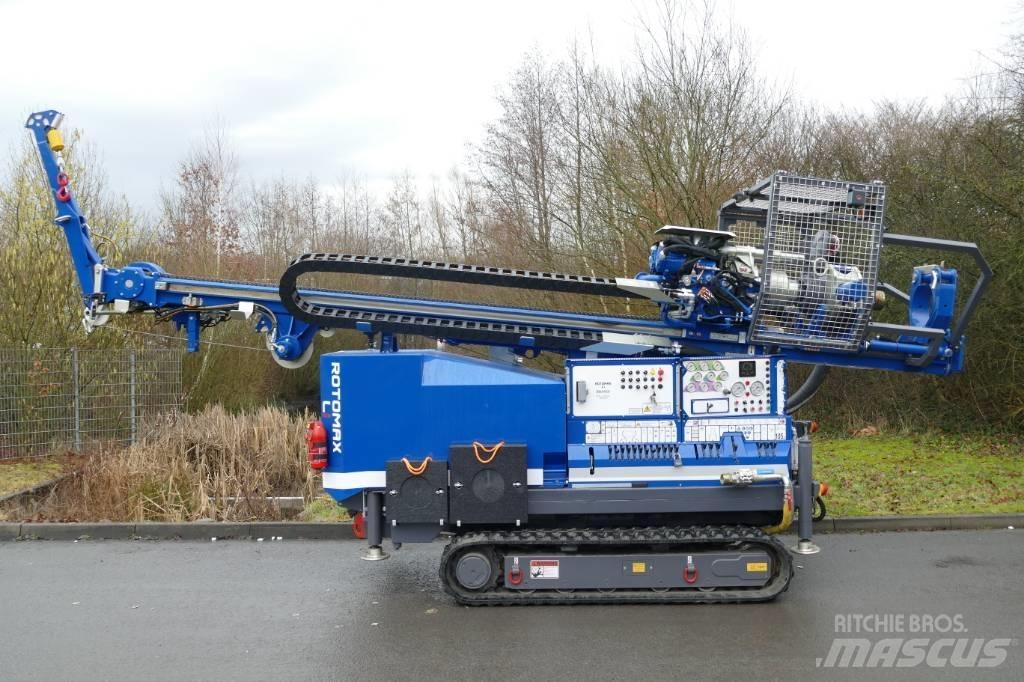

Geotec ROTOMAX Li

Cena bez DPH

Ponúknite cenu

FavoriteObľúbené
sharePodiel
Save searchUložiť vyhľadávanie
report adNahlásiť podozrivý inzerát

INFO

Kategória
Vodné vrtné súpravy
Značka / model
Geotec ROTOMAX Li
Rok výroby
2022
Zvláštne možnosti
Nové/nepoužité
Umiestnenie stroja
Nordkirchen
Krajina
Nemecko
Všeobecná úroveň
1
2
3
4
5
Mascus ID
B88F05AC

PODROBNOSTI

Posledná revízia
2022
Servisná knižka
Áno
Motor
136KM
Výrobca motora
PERKINS
Emisná trieda
Stupeň V
Chladiaci systém
Voda
Prívodný mechanizmus
Valec
Hodiny nárazu
0
Bicie hodiny
0
Vyhotovenie s tyčovým manipulátorom
GEOTEC
Vyhotovenie prívodného mechanizmu
GEOTEC
Vyhotovenie pásu
GEOTEC
Carrier type
Pásový
Info o stave/Garancia
1000 Hours / 1 Year
Transportná hmotnosť
6 000 kg
Transportné rozmery (DxŠxV)
4000 x 1600 x 2400 mm
Stav predných pneumatík
100
Stav zadných pneumatík
100
Dodacie podmienky
EXW
Ďalšie informácie
EVERY MACHINE LEAVING OUR FACTORY - HAS DIFFERENT EQUIPMENT CONFIGURATIONS! BELOW YOU WILL FIND AN EXAMPLE OFFER! IF YOU HAVE QUESTION, PLEASE CONTACT US! WE ALSO HELP IN FINANCING! Drive: 100 kW (136 HP) 4-cylinder turbo diesel engine with Stage 5 and direct drive hydraulic pumps, pressure filter, oil cooler, bypass filter for the hydraulic circuit and AdBlue. Hydraulic system: Dual-circuit, load-independent primary hydraulics (1x load-responsive, 1x permanent), proportional, partially direct or remote controlled Control Valves: Main Control Valves - Auxiliary control blocks partially controlled manually Pressure indications: system pressure of the hydraulic circuits, supply from the purge pressure Drive type: gear with feed, disc brake Speed: Normal and rapid feed (2 speeds) (Max. 5 possible) Drilling pressure: max. 2,500 kg Lifting: max. 9,000 kg Stroke: 4,200 mm Drilling gear: Vibration-stable drilling gear with proportional hydraulic motor. Speed ​​range: 0 - 350 min-1 Torque range: 0 - 10,000 Nm Speeds and torques are set with the potentiometer on the control panel. Drilling pipes; GT95 (Customization possible) Maximum mounting diameter on the head: 178 mm (with more adapter) Grease lubrication system drilling gear (active cylinders) Clamping head Articulated rollers Sideshift Middle Pipe Clamp: Clamping range: Ø80 mm - Ø324 mm Swivel angle: 30 ° Breakaway torque: 20 kN Lifting force: 120 kN Lifting height: 400 mm Lubrication: Central lubrication beam Specifications are subject to change. Each machine is individually equipped.Zobraziť ďalšie

GEOTEC BOHRTECHNIK

Aspastrasse 26 59394 Nordkirchen Nordrhein-Westfalen Nemecko
