INFO

Kategória
Triediace zariadenie
Značka / model
CRS NI Trommel 1620
Rok výroby
2019
Hodiny prevádzky
3 100 h
Umiestnenie stroja
Llangyfelach
Krajina
Spojené kráľovstvo
Mascus ID
F535BDF0

INFORMÁCIE O CENE

Zvoliť menu

PODROBNOSTI

Skladové č.
SH2023/06
Ďalšie informácie

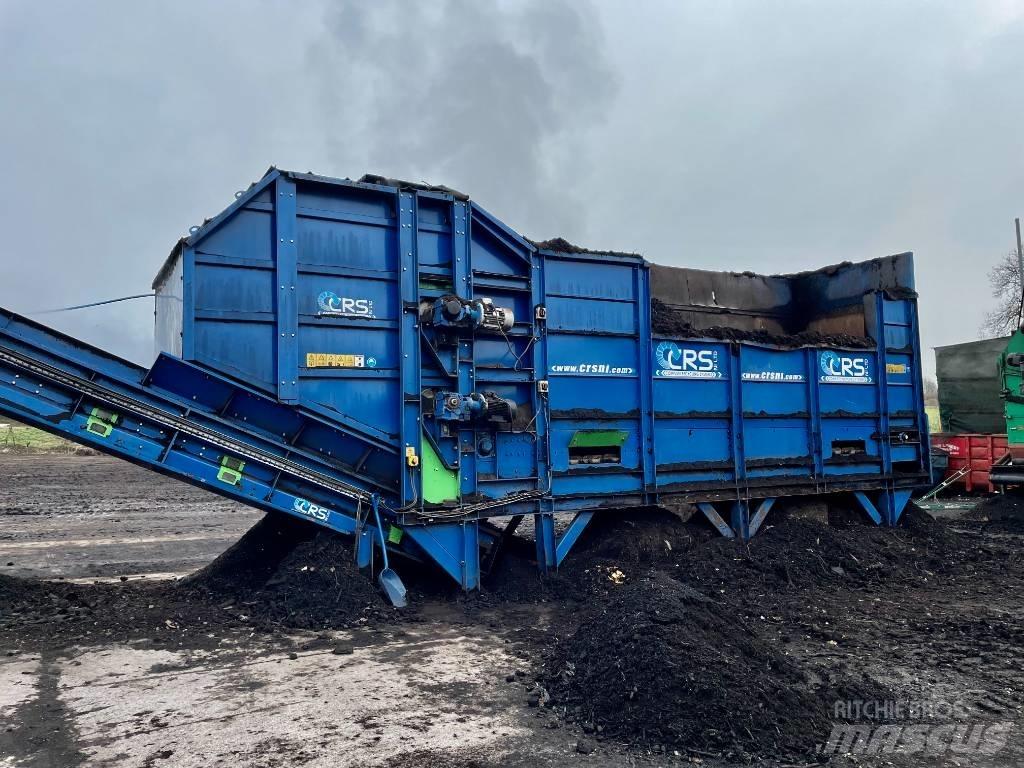

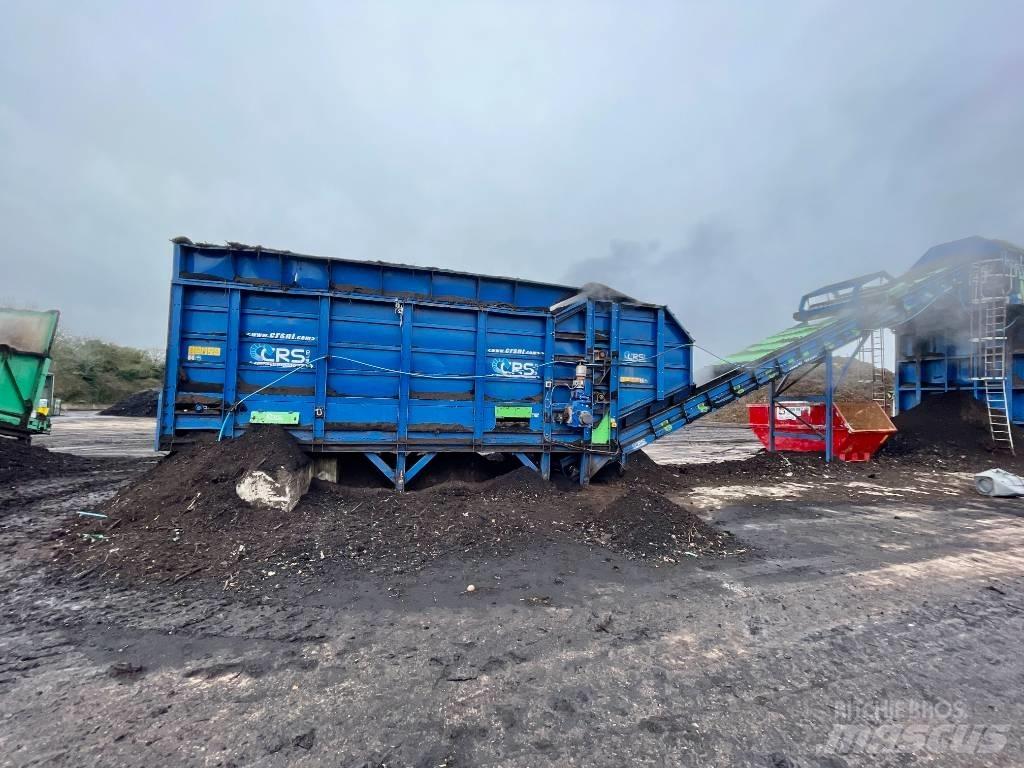

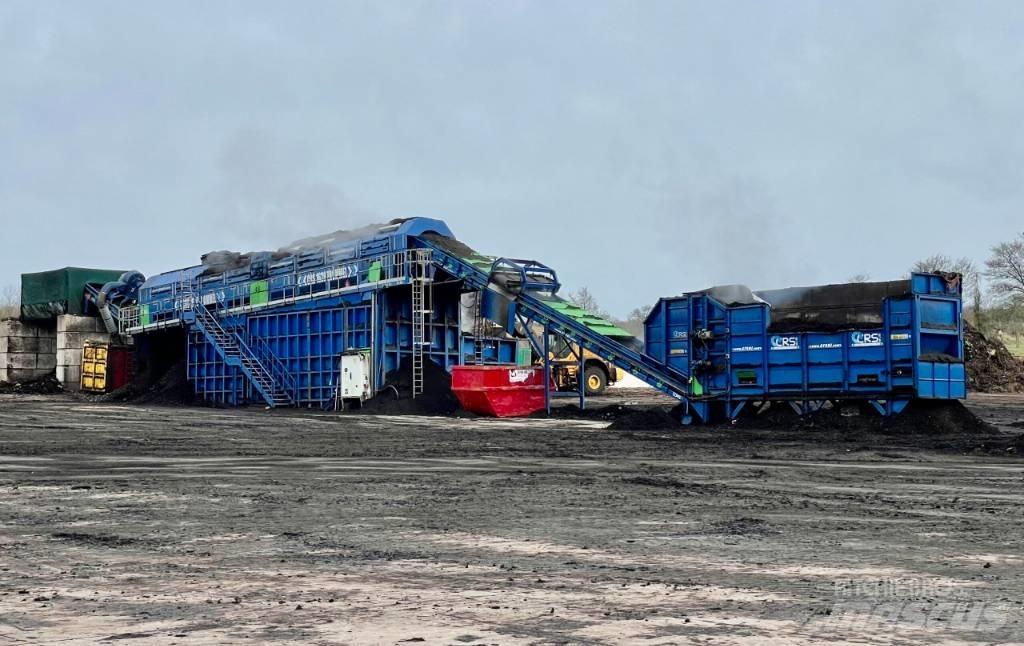

Comprising of following: Feed Hopper 1400 mm wide steel slatted conveyor with Nord 3 kw Electric motor drive. Twin dosing drums 5.5kw Electric motor drive each. Dimensions: 11 m long x 3 m wide x 4.5 m high. Trommel Feed Conveyor 15.5 m long x 1200 mm wide belt. Nord 7.5 kw Electric motor drive. Conveyor Tek 1200 mm wide Overband Magnet with 1.5Kw Electric motor drive. Trommel Screen 1620 Comprising of two drums linked together total length of 19.4 m, diameter 2 m. Drum No1: Fitted with 15 mm square punch plates. Driven by all 4 wheels 5.5kw Electric motor drive each. Drum No2: Fitted with 15 mm & 25 mm square punch plates. Driven by 2 wheels on discharge end only 5.5kw Electric motor drive each. Mounted on supporting structure complete with including access platform & stairs. Dimensions: 2.7 m wide x 2.9 m high. Reject Out feed Conveyor. 8.5 m long x 1200 mm wide belt. Nord 5.5 kw Electric motor drive. Air Vacuum system over conveyor belt with 18.5 kw Electric motor drive fan unit. Electrical control panel The system is still currently operating price excludes dismantling and removal from siteZobraziť ďalšie

Recycling Plant & Machinery

Bryntywood SA5 7LP Llangyfelach Swansea Spojené kráľovstvo
