CP Glass Breaker

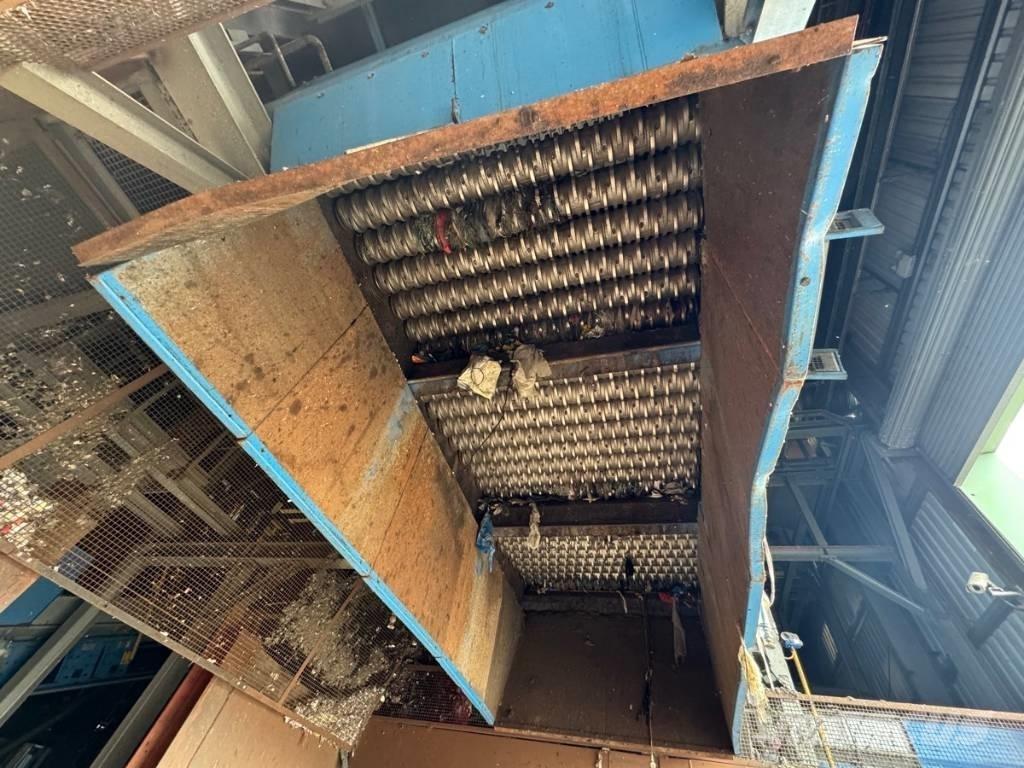

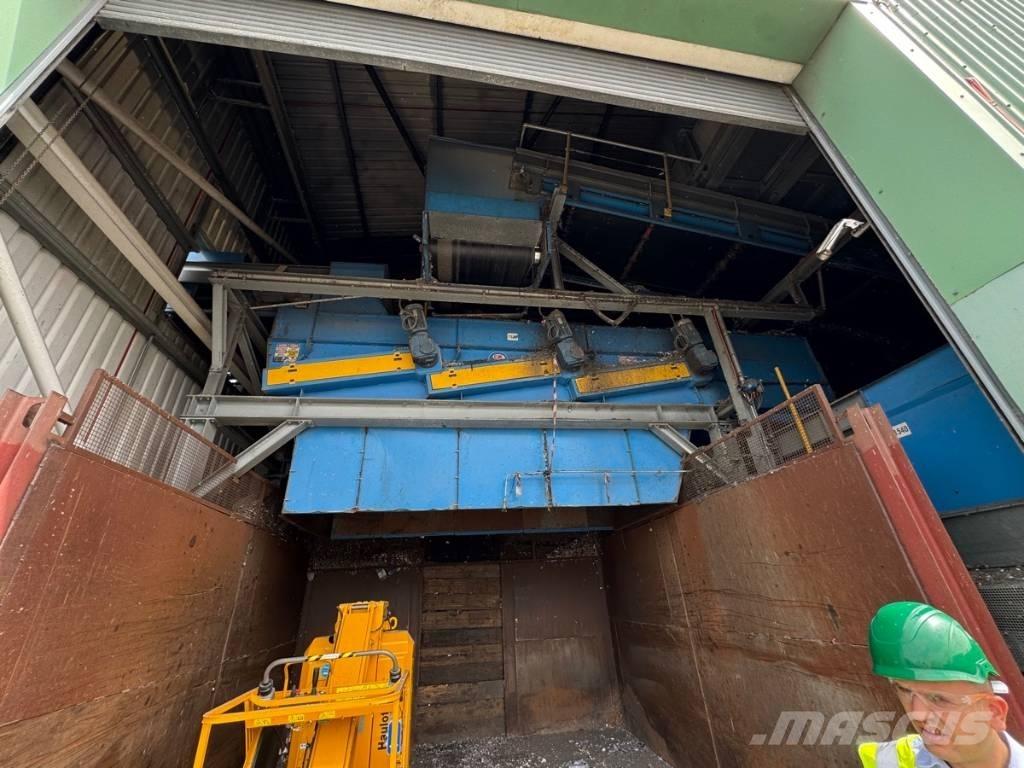

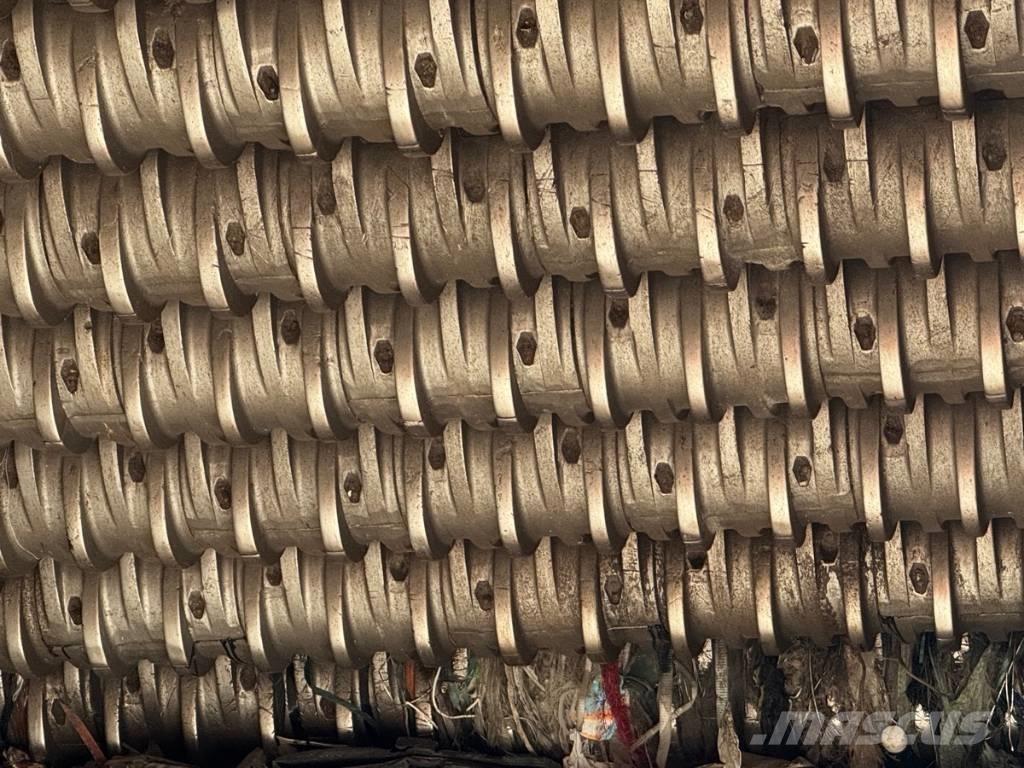

OVERVIEW The CP Glass Breaker breaks and separates co-mingled glass containers and other glass items into small pieces of 2 inch and smaller. It also sorts and separates the smaller fraction materials from the remaining larger fibre and containers. The glass breaker screens are modular and can be connected to the required screen size. KEY FEATURES AND COMPONENTS 1 Frame Modular screen section 2 Discs Patented 5-lobed elliptical shaped, cast alloy steel discs 3 Rotors Steel square tube rotors are clocked 90 degrees to each other 4 Spindles Rotors are bolted to spindles allowing for easy removal/replacement of discs. 5 SyncDrive™ Timing belts are utilized to drive the rotors for reduced maintenance. 6 Gearmotors With VFD the motor speed can be adjusted by the operator via the MCC. KEY BENEFITS • Breaks and separates glass materials into 2” and smaller pieces. • Non-pinching disc design accurately sizes material; opening size between discs does not change. • Minimizes contaminants and dramatically improves marketability of end-products. • Decreases system-wide maintenance by removing glass early. • Variable speed drive allows operator to adapt to material changes. • SyncDrive™ utilizes belts, reducing maintenance as compared to industry standard roller chains. • Lowest operating-cost screen with the longest lasting discs in the industry.
