Vahva FORTI 200

Cena bez DPH

Compnay LOGO
Images6Videos1
Vahva FORTI 200 Rotátory
Vahva FORTI 200 Rotátory
FavoriteObľúbené
sharePodiel
Save searchUložiť vyhľadávanie
Tlač

INFO

Kategória
Rotátory
Značka / model
Vahva FORTI 200
Rok výroby
2015
Stav
Demo
Umiestnenie stroja
Saue
Krajina
Estónsko
Všeobecná úroveň
1
2
3
4
5
Mascus ID
24BE0111

INFORMÁCIE O CENE

Zvoliť menu

PODROBNOSTI

Skladové č.
VR50000
Servisná knižka
Áno
Vhodné pre nasledovné stroje
a mechanical rototilt designed for excavators from 13 to 20 tonnes, can be fitted to stick with pin diameter 80 mm, distance between pins (pin spread) 485 mm, face spread (stick width) 335 mm (JCB).

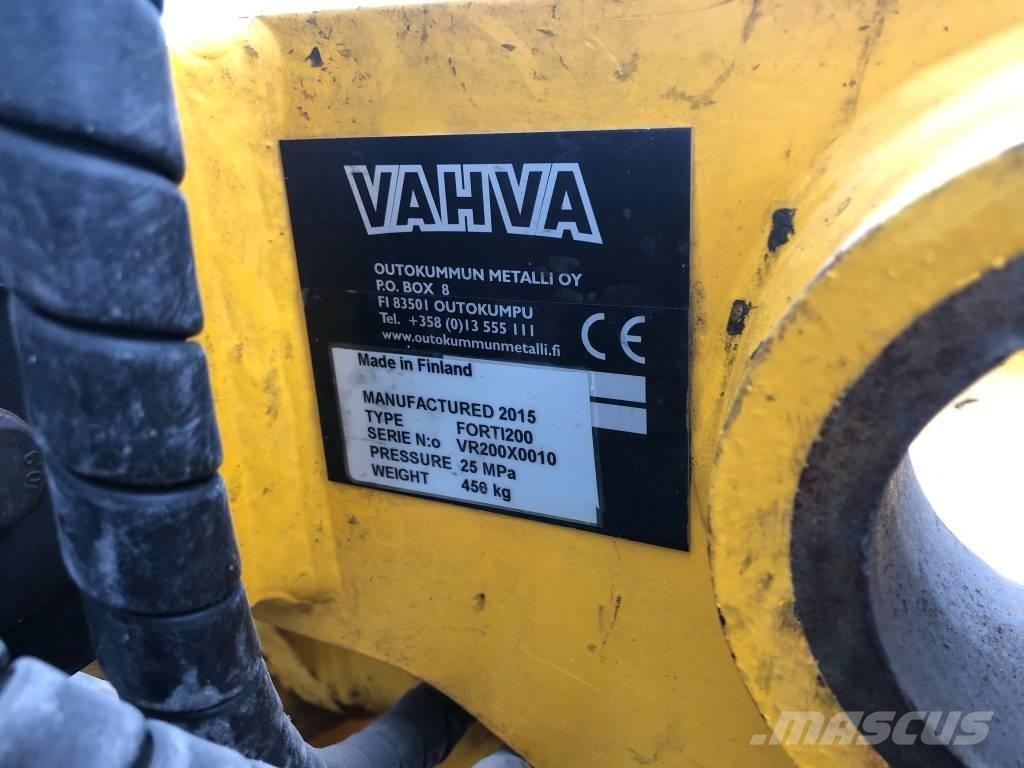

Výrobné číslo
VR200X0010
Prevádzkový tlak
250 bar
Požadovaný hydraulický prietok
80 l/min
Transportná hmotnosť
450 kg
Transportné rozmery (DxŠxV)
990 x 720 x 280 mm
Vyrobené v štáte
Fínsko
Dodacie podmienky
EXW
Certifikácia
CE
Ďalšie informácie

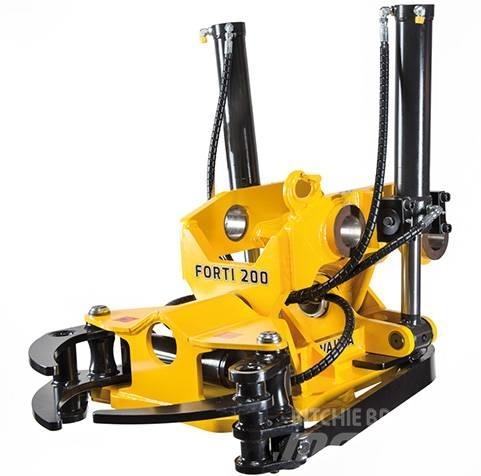

A new and cheaper alternative for tilt-rotator, features full hydraulic tilt and a manual rotation system, manufactured by Finnish company Vahva. The Vahva Forti 200 is a mechanical tilt-rotator designed for excavators from 13 to 20 tonnes. Like most tilt-rotators these days the bucket or attachment can be tilted hydraulically 45 degrees both ways. But it’s the rotation aspect which differs from conventional tilt-rotators, with no expensive gear drive or electrics involved in the build. The Forti 200 couples to the bucket or attachment by engaging with a conical disc, which is then tightened and locked in place by the gripper. When the operator wants to rotate his bucket to a desired position he simply loosens the grip slightly and manually pushes the bucket around before re-locking the mechanism. You can see the system in operation in this promotional video from Vahva. Maybe you would see this as a bit of a backward step with tilt-rotation systems, but surely it could appeal to those who are watching the pennies more closely and working on a tight budget maybe.Zobraziť ďalšie

Sautec AS

Tule 10 76505 Saue Harjumaa Estónsko
