Shantui SD32

Cena bez DPH

Ponúknite cenu

Compnay LOGO
Images3

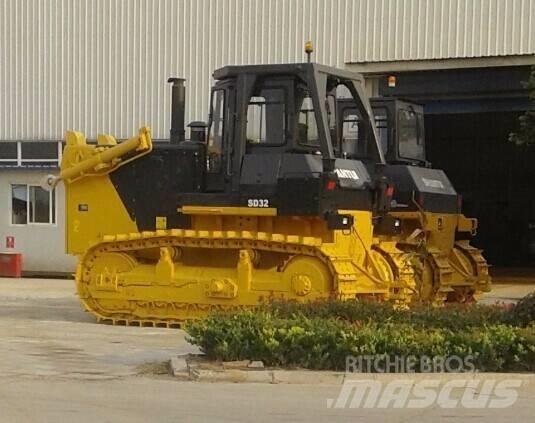

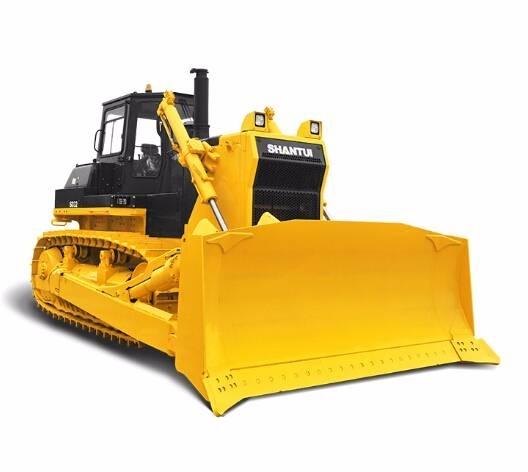

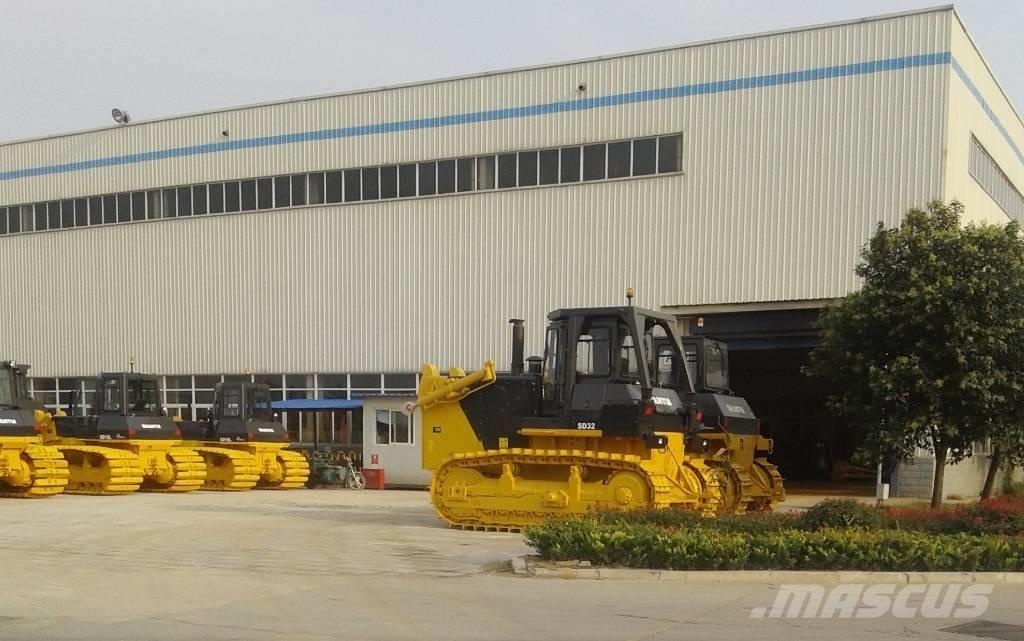

Shantui SD32 Pásové dozéry
Shantui SD32 Pásové dozéry
Shantui SD32 Pásové dozéry
FavoriteObľúbené
sharePodiel
Save searchUložiť vyhľadávanie
Tlač

INFO

Kategória
Pásové dozéry
Značka / model
Shantui SD32
Rok výroby
2018
Stav
Nové/nepoužité,Možnosť zapožičania,Použité
Umiestnenie stroja
Jining, Shandong, China
Krajina
Čína
Všeobecná úroveň
1
2
3
4
5
Mascus ID
9DD39A99

PODROBNOSTI

Skladové č.
SD32
Posledná revízia
yes
Servisná knižka
Áno
Pracovná šírka
413 cm
Výrobné číslo
SD32
Hrubá hmotnosť
37 200 kg
Typ ostří
Straight blade
Podvozok
Pásový
Typ kabíny
Uzatvorená kabína
Emisná trieda
Stupeň II
Motor
Cummins NTA855-C360S10
Výkon motora
232 kW (315 hp)
Rozchod kolies
560 mm
Prevodovka
Shantui
Výrobca motora
Cummins
Transportné rozmery (DxŠxV)
6880 x 4130 x 3730 mm
Pôvodná farba
yellow
Značka pneumatík
Shantui
Info o stave/Garancia
ISO9001
Stav predných pneumatík
100
Vyrobené v štáte
Čína
Equipped for
propertynames.pp_equippedfor_2100012
Dodacie podmienky
FOB, CFR, CIF, EXW
Certifikácia
EPA, CE, ANSI
Príslušenstvo
Navijak
Klimatizácia
Prídavná hydraulika
Single shank ripper
Zobraziť ďalšie
Ďalšie informácie
Technical Features ●Chongfa NTAA855-C360S10 engine is equipped with exhaust gas turbocharger, featuring strong power and high efficiency and energy-saving, and can work normally even in the highlands as high as 3,600m. Depending on the customers’ demands, the option Cummins and Weichai engines are available. ●The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission capacity and efficiency and high productivity. ●The independent engine water tank, the chassis oil cooler, and the water-air intercooler integrated in the Chongfa engine provide prominent cooling performance and simple maintenance operations to guarantee the continuous working of the machine. ●The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bending moment to support the continuous high-strength working of machine under severe working condition and the high quality welds guarantee the life cycle of the main frame. ●The low-drive final drive can provide powerful drive force and efficient gradeability. Shantui's crawler chassis has reached the international advanced level in process level and can adapt to various complicated working conditions, featuring high reliability and carrying capacity. ●The standard straight tilting blade features powerful cutting force and the single-shank and three-shank rippers of adjustable penetrating angle can be used for the ripping of clay and frozen earth as well as the stripping of hard working faces, such as gravel and hardened salt mine. Performance Parameters Length × width × height (mm) (excluding ripper) 8560×4130×3640(including ripper) Operating weight (t)(excluding ripper) 37.2 Engine model NTA855-C360S10 Net power/rated speed (kW/rpm) 235/2000 Ground pressure(Mpa) 0.105 Blade type Straight tilting blade Angle blade Semi-U blade Blade capacity(m3) 10 for straight tilting blade 6.2 for angle blade 11.7 for Semi-U blade Applicable Working Conditions Bulldozing, digging, landfill, and other bulk operations.Zobraziť ďalšie
