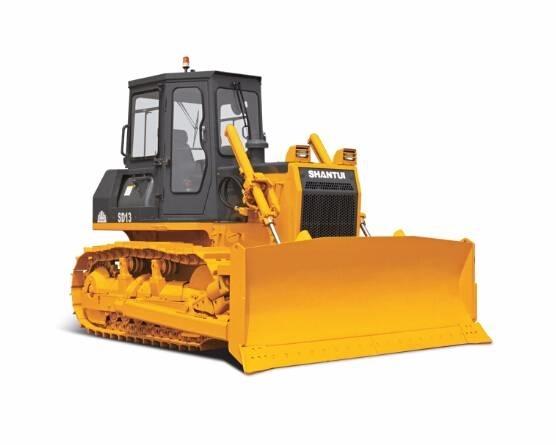

Shantui SD13

Name: Shantui SD13
Brand: Shantui
SKU: 9207F1C3
Availability: InStock

Cena bez DPH

Ponúknite cenu

Obľúbené

Podiel

Uložiť vyhľadávanie

Tlač

INFO

Kategória

Pásové dozéry

Značka / model

Shantui SD13

Rok výroby

2018

Stav

Nové/nepoužité

Umiestnenie stroja

Jining, Shandong, China

Krajina

Čína

Všeobecná úroveň

Mascus ID

9207F1C3

PODROBNOSTI

Skladové č.

SD13

Posledná revízia

yes

Servisná knižka

Áno

Pracovná šírka

320 cm

Výrobné číslo

SD13

Hrubá hmotnosť

13 700 kg

Typ ostří

Straight blade

Podvozok

Pásový

Typ kabíny

Uzatvorená kabína

Emisná trieda

Stupeň II

Motor

Shangchai SC8D143G2B1

Výkon motora

94,2 kW (128 hp)

Rozchod kolies

460 mm

Prevodovka

Shantui

Transportné rozmery (DxŠxV)

4500 x 3200 x 3000 mm

Pôvodná farba

yellow

Značka pneumatík

Shantui

Info o stave/Garancia

ISO9001

Stav predných pneumatík

100

Vyrobené v štáte

Čína

Equipped for

propertynames.pp_equippedfor_2100012

Dodacie podmienky

FOB, CFR, CIF, EXW

Certifikácia

EPA, CE, ANSI

Príslušenstvo

Navijak

Klimatizácia

Prídavná hydraulika

Single shank ripper

Zobraziť ďalšie

Ďalšie informácie

Technical Features ● The turbocharged engine features strong power, high efficiency and energy-saving, and high torque reserve efficiency. ● The high reliability power shift transmission and the two-stage final drive with spur gear reducing structure features reliable and stable power transmission, high durability, and high operating effic ● The high-efficiency radiator can help the normal running of machine under high temperature environment and ease the daily maintenances. ● The valves and pumps are reasonably arranged to ease the repairs and maintenances. The multi-stage filtration system is adopted to effectively guarantee the oil cleanliness and reduce the malfunction rate of hydraulic system. ● The full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame. ● The electric system features stable and reliable working. All instruments are controlled by microcomputer, featuring vivid and distinct display and accurate and convenient readings. ● The rigid traveling system effectively improves the stability of machine under complicated working conditions. ● The comfortable and convenient operating console, light controls, and adjustable seat and armrests provide the operation personnel with comfortable operating experiences. ● The working device features high stiffness and reliability and good fatigue resistance and can adapt to the demands of severe working conditions. ● The standard straight tilting blade features strong cutting force to handle all kinds of severe working faces and the outstanding durability of blade is guaranteed by the application of high strength structure and high performance materials. Performance Parameters Length × width × height (mm) (excluding ripper) 4492×3185×2950 Operating weight(t) (excluding ripper) 13.7 Engine model SC8D143G2B1 Net power/rated speed (kW/rpm) 95.5/1900 Ground pressure(Mpa) 0.063 Blade type Straight tilting blade Blade capacity(m3) 3.158 for straight tilting blade 2.33 for angle blade Applicable Working Conditions Earthworks.Zobraziť ďalšie
