Shantui SD08YS

Cena bez DPH

Ponúknite cenu

Compnay LOGO
Images1

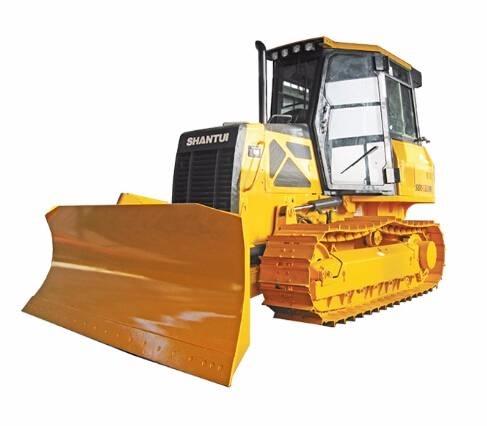

Shantui SD08YS Pásové dozéry
FavoriteObľúbené
sharePodiel
Save searchUložiť vyhľadávanie
Tlač

INFO

Kategória
Pásové dozéry
Značka / model
Shantui SD08YS
Rok výroby
2018
Stav
Nové/nepoužité
Umiestnenie stroja
Jining, Shandong, China
Krajina
Čína
Všeobecná úroveň
1
2
3
4
5
Mascus ID
9D8BD851

PODROBNOSTI

Skladové č.
SD08YS
Posledná revízia
yes
Servisná knižka
Áno
Pracovná šírka
320 cm
Výrobné číslo
SD08YS
Hrubá hmotnosť
8 020 kg
Typ ostří
Straight blade
Podvozok
Pásový
Typ kabíny
Uzatvorená kabína
Emisná trieda
Stupeň IIIB
Motor
Cummins QSB3.3
Výkon motora
58,2 kW (79,1 hp)
Rozchod kolies
610 mm
Prevodovka
Shantui
Transportné rozmery (DxŠxV)
4300 x 3200 x 2800 mm
Pôvodná farba
yello
Značka pneumatík
Shantui
Info o stave/Garancia
ISO9001
Stav predných pneumatík
100
Vyrobené v štáte
Čína
Equipped for
propertynames.pp_equippedfor_2100012
Dodacie podmienky
FOB, CFR, CIF, EXW
Certifikácia
EPA, CE, ANSI
Príslušenstvo
Navijak
Klimatizácia
Prídavná hydraulika
Single shank ripper
Zobraziť ďalšie
Ďalšie informácie
Technical Features ● The air-air inter-cooled, electronically controlled, and turbocharged diesel engine features outstanding power performance, economy, and durability, with the emission conforming to EPA Tier 3/StageIIIA standard. ● The built-in radiator features high heat exchange efficiency, in which the thin core thickness improves the ventilation efficiency of fan, reduces the wind resistance, and guarantees the normal running of machine under high temperature environment. ● The dual-circuit electronically controlled static pressure drive system automatically adjusts the power output and traveling speed to adapt to the load variation. The tracks on two sides are driven independently to ensure full power output during steering and realize reverse rotation of tracks on two sides. It features completely “continuously variable” speed change to provide best speed for different working conditions. ● The modular wheel reducer system features high strength, long service life, and easy maintenances. ● The compact body remarkably enhances the flexibility and features advantages for operations in narrow areas. ● High strength chassis structure meets the demands of heavy-load working condition and features high rigidity and durability. ● The palm commanded electronic control system features accurate, flexible, simple, and comfortable operations, with the left joystick controlling the traveling direction and speed of the machine and the right joystick controlling various motions of the working device. ● The intelligent service system incorporates automatic malfunction detection and automatic diagnosis functions and provides remote technical support. ● The integrated intelligent thermal management system realizes the best temperature control and the noise reduction and energy-saving. ● The ROPS/FOPS shock-absorbing cab, the air suspension seat, and the high capacity heating and air conditioning system provide a safe, comfortable, and spacious operating environment. ● The high capacity, multi-functional, and power angle blade with adjustable penetrating angle is suitable for fine operations, including leveling, backfilling, stacking, paving, and site clearing, featuring high rigidity and durability and high productivity. ● The optional imported hydraulic winch can be used for rescue and lumbering operations. It features outstanding rope traction force at any speed and stepless drum speed change. The high strength traction frame features high stiffness and reliability and good fatigue resistance and can adapt to the demands of severe working conditions. Performance Parameters Length × width × height (mm) (excluding ripper) 4252×2680×2775(Including traction frame) 4252×3150×2775(Including traction frame) Operating weight(t) (excluding ripper) 8.02 8.44 Engine model QSB3.3 Net power/rated speed (kW/rpm) 59/2200 Ground pressure(Mpa) 0.04 0.03 Blade type U-blade Blade capacity(m3) 1.93 2.04 Applicable Working Conditions Modeling of golf courses and earthworks.Zobraziť ďalšie

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Čína
