Shantui DH17R

Cena bez DPH

Ponúknite cenu

Compnay LOGO
Images1

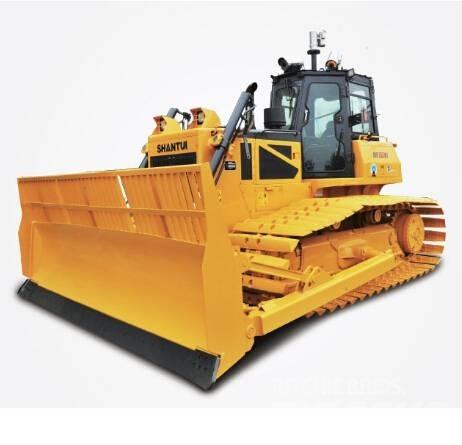

Shantui DH17R Pásové dozéry
FavoriteObľúbené
sharePodiel
Save searchUložiť vyhľadávanie
Tlač

INFO

Kategória
Pásové dozéry
Značka / model
Shantui DH17R
Rok výroby
2018
Stav
Nové/nepoužité
Umiestnenie stroja
Jining, Shandong, China
Krajina
Čína
Všeobecná úroveň
1
2
3
4
5
Mascus ID
8B2C320D

PODROBNOSTI

Skladové č.
DH17R
Posledná revízia
yes
Servisná knižka
Áno
Pracovná šírka
342 cm
Výrobné číslo
DH17R
Hrubá hmotnosť
18 900 kg
Typ ostří
Semi u-blade
Podvozok
Pásový
Typ kabíny
Uzatvorená kabína
Emisná trieda
Stupeň IIIA
Motor
Weichai WP10G190E354
Výkon motora
125 kW (170 hp)
Rozchod kolies
900 mm
Prevodovka
Hydraulic
Transportné rozmery (DxŠxV)
5250 x 3420 x 3080 mm
Pôvodná farba
yellow
Značka pneumatík
SHANTUI
Info o stave/Garancia
ISO9001
Stav predných pneumatík
100
Vyrobené v štáte
Čína
Equipped for
propertynames.pp_equippedfor_2100011
Dodacie podmienky
FOB, CFR, CIF, EXW
Certifikácia
EPA, CE, ANSI
Príslušenstvo
Navijak
Klimatizácia
Prídavná hydraulika
Multi shank ripper
Zobraziť ďalšie
Ďalšie informácie
Technical Features ●Weichai engine and high-efficiency fuel injection pump features high torque, high performances, high parts universality, and low maintenance cost. ●The electronically controlled static pressure drive system equipped can automatically adapt to the load variation and provide best bulldozing speed under different working loads. ●The intelligent matching technology can achieve best working efficiency and most reasonable fuel economy, with the composite fuel consumption reduced by 10~15%. ●The ergonomic hexahedral cab features large space and excellent visual field. ●The suspended single accelerator pedal features small volume, large foot space, and high operation comfort. ? ●The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture. ●The integrally sealed shock-absorbing system of the cab reduces the interior noise by 3~4dB. ●The safety passage system of the whole machine guarantees the driver’s safety. ●With electronically controlled traveling system and hydraulic pilot controlled working device, the traveling system and the working device can be controlled by single joystick. ●The accurate control can be achieved by low operating forces, featuring flexible and light operations, high operation comfort, and high working efficiency. ●The static pressure drive system is capable of stepless speed change, loaded steering, and pivot steering, featuring high flexibility and mobility and applicability for diversified working conditions. ●The accurate control can realize the bulldozing operations in narrow spaces. ●The chassis system features long ground length, high ground clearance, stable traveling, and excellent trafficability and the semi-U blade equipped features powerful operation capability. ●The optional three-tooth ripper and traction frame are available to meet the diversified operation needs. ●The structural parts inherit the excellent quality of Shantui mature products. ●The electric harnesses adopt seamless corrugated pipes and branching deconcentrators, featuring high protection grade. ●The core electric and hydraulic units adopt imported products, featuring stable and reliable quality and extremely high reliability. ●The static drive system features compact structure, small volume, light weight, and easy maintenances. ●The modular structure eases the disassembling of parts and ensures low maintenance cost. Performance Parameters Length × width × height (mm) (excluding ripper) 5250×3420×3080 Operating weight (t) (excluding ripper) 18.9(including ripper) Engine model WD10G190E213 Net power/rated speed (kW/rpm) 127/2000 Ground pressure(Mpa) 0.064 Blade type Semi-U blade Blade capacity(m3) 4.4 Applicable Working Conditions Landfill of earthworks and bulldozing of other bulk materials and operations in extremely narrow sites.Zobraziť ďalšie
