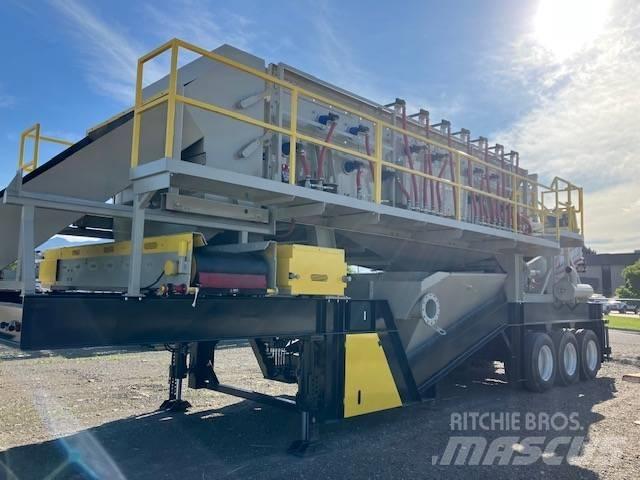

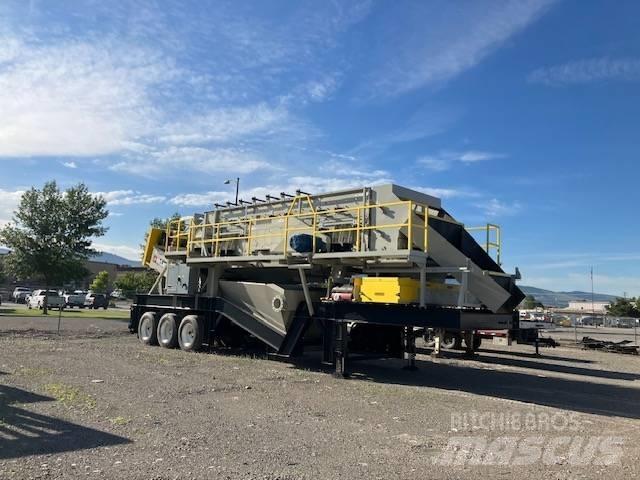

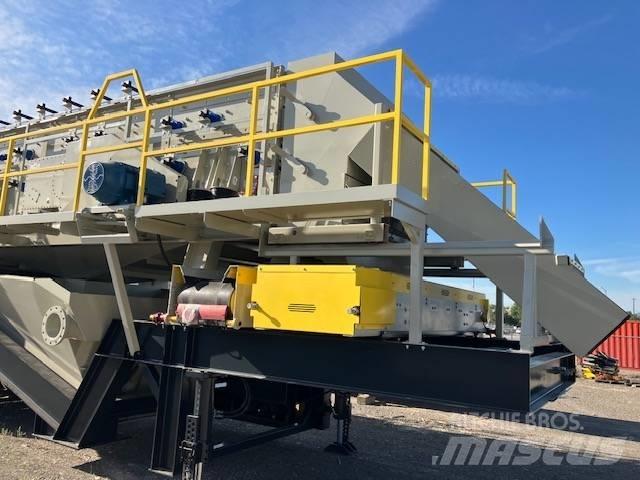

Spomac 6203
Cena bez DPH
Ponúknite cenu
3
Obľúbené
Podiel
Uložiť vyhľadávanie
Nahlásiť podozrivý inzerátINFO
Kategória
Omývače kolies
Značka / model
Spomac 6203
Rok výroby
2024
Umiestnenie stroja
Camrose, Alberta
Krajina
Kanada
Mascus ID
86B650E7
PODROBNOSTI
Vyrobené v štáte
Kanada
Ďalšie informácie
Horizontal Screen
• 6’ x 20’ three deck JCI screen with base frame
• 50 HP 1200 RPM TEFC Motor
Fine Material Washer
• McLanahan Twin Sand Screw - 36” x 25’
Three Axle Carrier
• Drop center frame
• 16” x 36# WF Beam
• H-9700 triple axel hutch suspension
• 22,500 standard axles, 11:00R x 24.5 tires
• Air brakes, lights and mud flaps
Hoppers, Chutes, Walkways and Mount
• Rollaway discharge chute for screen access
• Top discharge chute belting for rock control
• 12” x 30# WF screen and hopper supports
• Under screen collection hopper with wash down square tube each end
• 3/16 discharge chutes
• 1/4” AR lined discharge chutes with 4 flop gates per deck
• AR lined flop gates with external handles to open or close
• 24” 3/16 diamond plate walkways on both sides of screen
• 48” wide 3/16 diamond plate back platform
• 4” toe boards and 1 ½ square tube 42” high handrails with access ladders
• Safety swing gates at access points
Blending flop gates for blending first to second and second to third deck products
18 Spray Bar Wash System
• Full length manifold with inlet pipe and flange mounted on screen frame
• Individual brass ball valves for adjustable water flow
• Behringer HD pipe clamps on spray bars
• Sch. 80 1 ½ pipe drilled and tapped for brass spray nozzles
• Spomac 12” x 48” pre-water strainer with washable screen
• Pre-wash box lined with side spray bars and easy fold down for shipping
• Bolt-on belting on three sides of pre-wash box, below spray bars
4 Heavy Duty Spomac Hydraulic Legs
• 8 HP Honda hydraulic power unit with four bank valve manifold
• 70,000 lb capacity hydraulic legs with heavy duty foot pads
30” x 12’ Cartridge Conveyor for Second Deck
• Motorized head pulley 7 ½ HP 12.64 model 320M; vulcanized lagged pulley, with mounting brackets
• Channel mount troughing idler 20 degree CEMA “B” 4” steel
• Return idler CEMA “B” 4” steel roller, one center mount
• 10” self-cleaning wing tail pulley, Dodge SC bearings, 1 15/16 shaft
• Legg 2 ply 250 PIW 3/16 top x 1/16 bottom covers, vulcanized splice
• Full length formed skirt board
• Wide slot bearing take-up
• 30” Gordon belt wiper
24” x 12’ Cartridge Conveyor for Third Deck
• Motorized head pulley 7 ½ HP 12.64 model 320M; vulcanized lagged pulley, with mounting brackets
• Channel mount troughing idler 20 degree CEMA “B” 4” steel
• Return idler CEMA “B” 4” steel roller, one center mount
• 10” self-cleaning wing tail pulley, Dodge SC bearings, 1 15/16 shaft
• Legg 2 ply 250 PIW 3/16 top x 1/16 bottom covers, vulcanized splice
• Full length formed skirt board
• Wide slot bearing take-up
• 24” Gordon belt wiper
Electrical Switch Gear for Plant includes wiring for:
• NEMA 4 enclosure with start and stop buttons on door
• Warning horn
• Two 10 HP for twin sand screw
• One 50 HP for screen
• Two 7 ½ HP for cross conveyors
• Four spare 20 HP for outside conveyors
• Mounted on side of chassis stand
Primer and PaintZobraziť ďalšie
