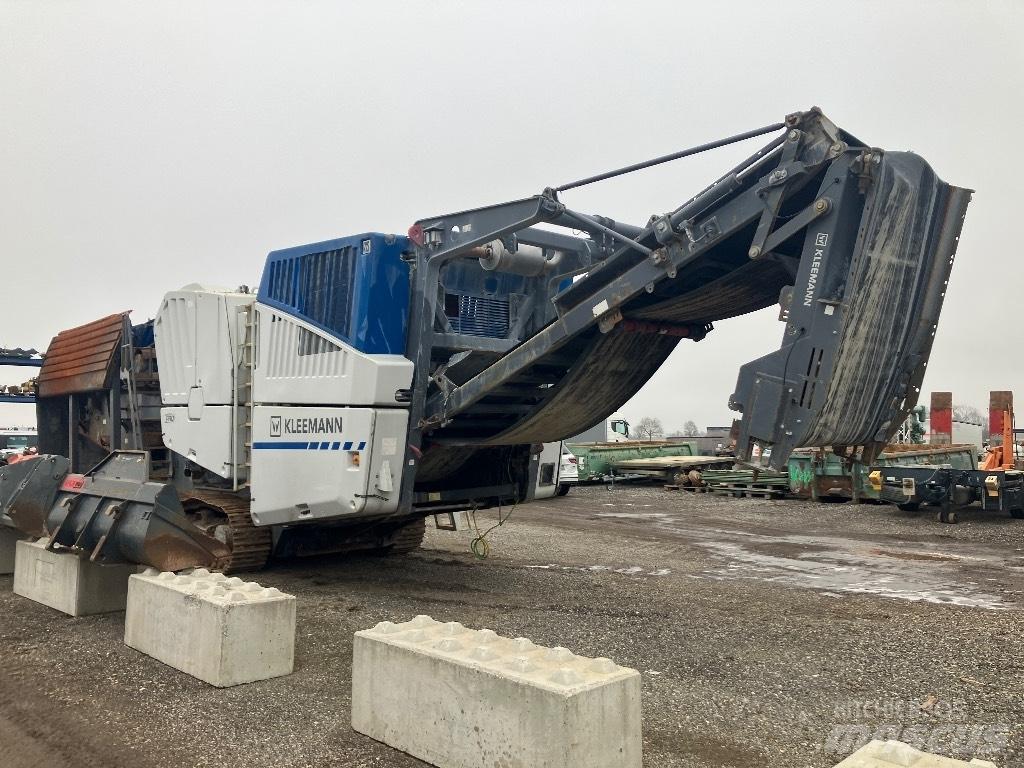

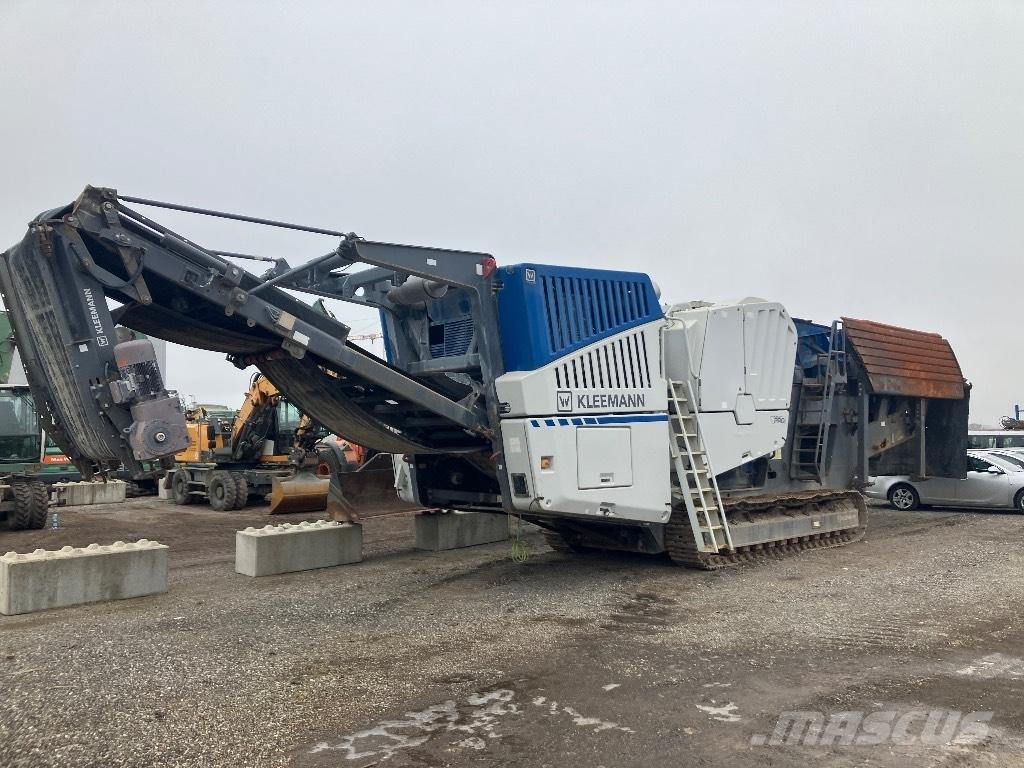

Kleemann MC 120 Z

Feeding unit Feed capacity up to approx. (t/h) 1) 450 Feed size max. (mm) 1,100 x 700 Feed height (with extension) (mm) 4,600 (5,200) Width x Length (with extension) (mm) 2,850 x 4,100 (3,600 x 4,700) Hopper volume (with extension) (m³) 10.5 (15) Vibrating feeder Width x Length (mm) 1,200 x 3,500 Prescreening Type double-deck heavy-piece screen Width x Length (mm) 1,200 x 2,500 Side discharge conveyor (optional) Width x Length (mm) 650 x 6,000 Discharge height approx. (mm) 3,500 Crusher Single toggle jaw crusher type STR 1,200 x 800 Crusher inlet width x depth (mm) 1,200 x 800 Crusher weight approx. (kg) 24,500 Crusher drive type, approx. (kW) electric, 160 Adjustment range of gap width (mm) 2) 45 - 175 Crusher gap adjustment hydraulic / mechanical Crushing capacity 3) with CSS 85 mm: approx. from - to (t/h) 145 - 190 with CSS 100 mm: approx. from - to (t/h) 165 - 215 with CSS 130 mm: approx. from - to (t/h) 205 - 270 with CSS 160 mm: approx. from - to (t/h) 25
