Shantui sl50wn

Cena bez DPH

Ponúknite cenu

Compnay LOGO
Images8

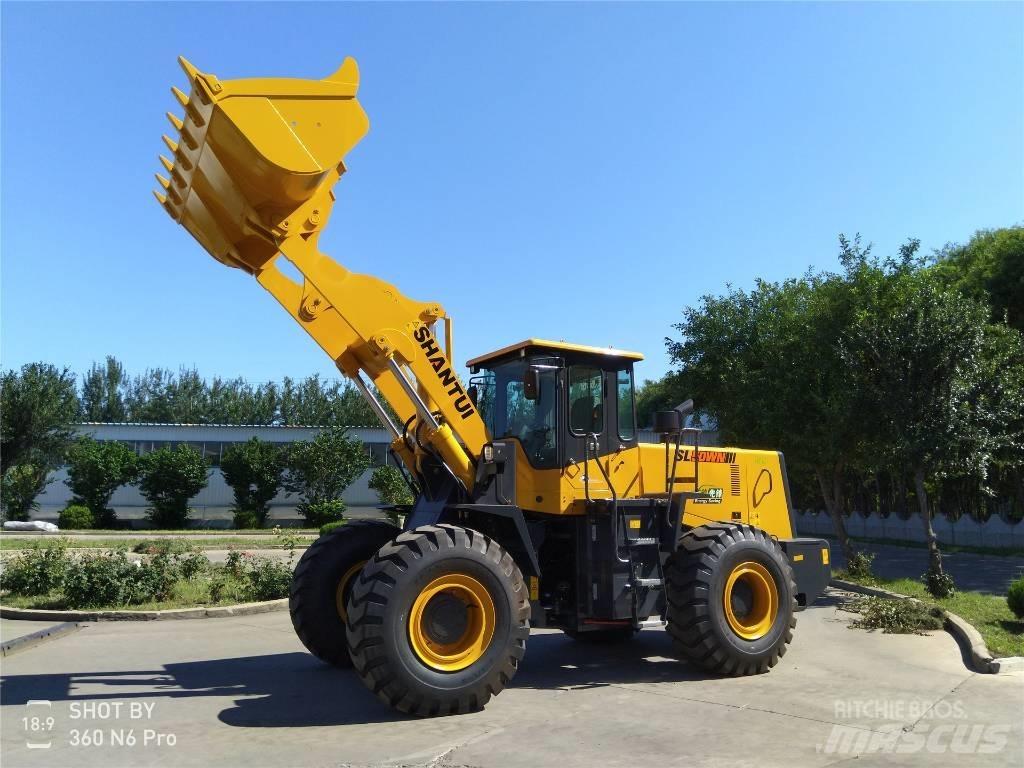

Shantui sl50wn Kolesové nakladače
Shantui sl50wn Kolesové nakladače
Shantui sl50wn Kolesové nakladače
FavoriteObľúbené
sharePodiel
Save searchUložiť vyhľadávanie
Tlač

INFO

Kategória
Kolesové nakladače
Značka / model
Shantui sl50wn
Rok výroby
2020
Hodiny prevádzky
5 h
Stav
Nové/nepoužité
Umiestnenie stroja
jining
Krajina
Čína
Všeobecná úroveň
1
2
3
4
5
Mascus ID
8AA99556

PODROBNOSTI

Posledná revízia
yes
Hrubá hmotnosť
17 100 kg
Zdvíhacia kapacita
5 000 kg
Typ karosérie
Kĺbový
Typ kabíny
Uzatvorená kabína
Emisná trieda
Stupeň IIIA
Motor
WD10G220GE23
Obsah lopaty
3 m3
Výkon motora
162 kW (220 hp)
Výrobca motora
WEICHAI
Maximálna rýchlosť
35 km/h
Transportné rozmery (DxŠxV)
8005×3026×3410 m
Pôvodná farba
Yellow
Info o stave/Garancia
1 year or 2000 working hours
Značka pneumatík
SHANTUI
Vyrobené v štáte
Čína
Dodacie podmienky
FOB, CFR, CIF, EXW
Príslušenstvo
Klimatizácia
Dokumenty
SL50WN-wheel-loader-sheet.pdf
Ďalšie informácie
This series is Shantui's best-selling wheel loader. It offers tremendous stability and has pilot controls designed for reduced work intensity and increased safety and comfort for the operator. It has an advanced Z-type reverse tipping mechanism with large breakout force and high efficiency. It also has the latest in dual pump (combined)technology to improve fuel savings and work efficiency. [Product Parameter] Operating weight(kg) 17100/17180/17900 Related loading(kg) 5000 Bucket capacity (m³) 3.0 Maximum lifting force (KN) 185 Static tipping load (full turn)(kg) 10000 Dumping height (Standard /Long)(mm) 3200/3300/3700 Dumping reach (Standard /Long)(mm) 1230/1230/1270 Engine model WD10G220GE23 SC11CB220G2B1 6CTA8.3-C215 Engine type In-line, water-cooled, 4-cylinder, direct injection, turbocharged Rated power(Kw) 162 162 160 Rated speed(rpm) 2000 2000 2200 Lifting time(s) 5.6 Lifting, dumping and lowering(s) 10.6 Forward (km/h) 1st 0-7   2nd 0-12   3rd 0-25    4th 0-35 Reverse(km/h)   1st 0-7   2nd 0-12    3rd 0-25     - Maximum climbing ability(°) 30 Overall dimensions(Standard Arm)(mm) 8005×3026×3410 Overall dimensions(Extended Arm)(mm) 8135×3026×3410 Overall dimensions(Long Arm)(mm) 8450×3026×3410 [Technical Features] 1.Weichai new generation Blue Engine II energy-saving engine conformed to China-II emission regulation and reduces the malfunction rate by 30% and saves the fuel by >10%. 2. The single-stage two-phase three-element torque converter and the Hangzhou Advance WG180 electronically controlled transmission are adopted for power transmission, featuring good power matching and stable motions. The split structures ease the repairs and maintenances. The transmission includes four forward gears and three reverse gears. This product is especially suitable for long-distance heavy-load operations (such as earthworks and mines) and features more powerful operations and faster motions. 3. It guarantees outstanding site adaptability and flexibility and strong operation stability and can handle common heavy-load operations with ease. 4. By minimizing the torque difference between front and rear drive shafts at turns, it prevents the slip difference between front and rear wheels and ensures the coincided wheel paths between front and rear wheels to improve the service life of tires and trafficability of machine and reduce the energy loss. 5. The optimized 3,200mm loading and unloading height, features extensive operation scope of the machine. The high strength boom in plate thickness of 46mm, which is beyond the industry design, guarantees outstanding loading performance and the carrying capacity against high torsional torque. The bucket is capable of automatic leveling function to achieve high loading and unloading efficiency and low labor strength. 6. The design optimized Z-shaped single rocker tilting mechanism features powerful operations and high efficiency, with the breakout force at 185KN. 7. With the adoption of finite element analysis optimization and the utilization of plate structure and automatic robot welding, the structural parts of the main machine feature high resistance against load and distortion, high firmness and compactness, and good stability. 8. Multiple working devices, including timber grab, bale grab, coal bucket, side dumping bucket, and quartering hammer, are at your choice. 9. The articulated structure of tapered roller bearings is adopted for front and rear frames, featuring reliable operations and easy maintenances. Our Advantage 1, Multiple products: Various wheel loader series. 2, Favorable price: Factory outlet. 3, Short delivery period: Factory outlet. 4, Flexible business terms: Supported by reliable insurance and financial platforms. 5, Perfect after-sales service: Global after-sales service network. Our Market Nowadays, Shantui products have a quite good reputation in Africa, Europe, America, and Asia.Zobraziť ďalšie

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Čína
