FMG RAP

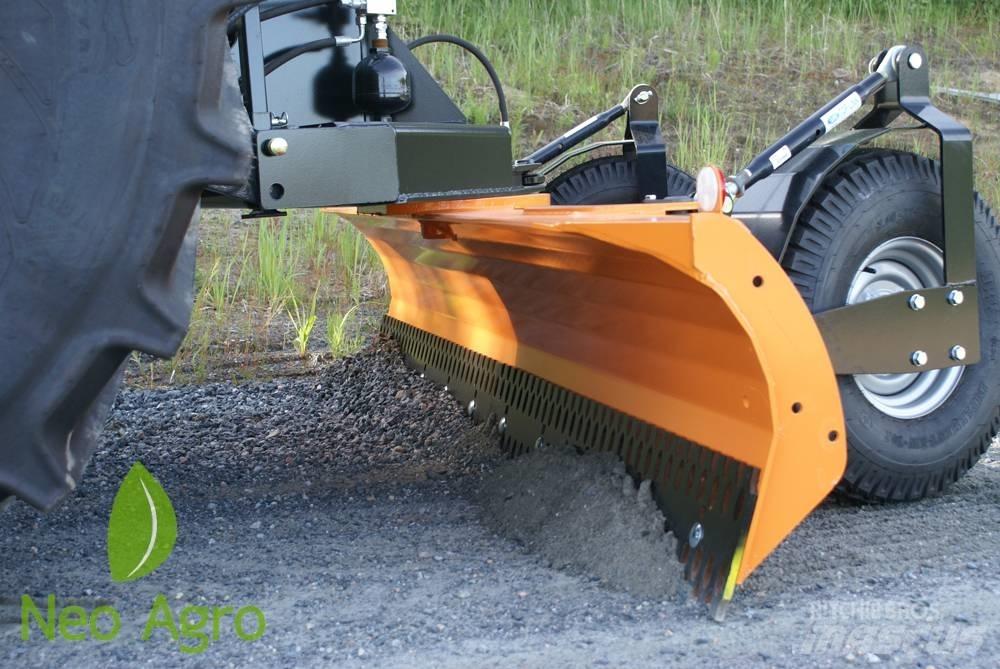

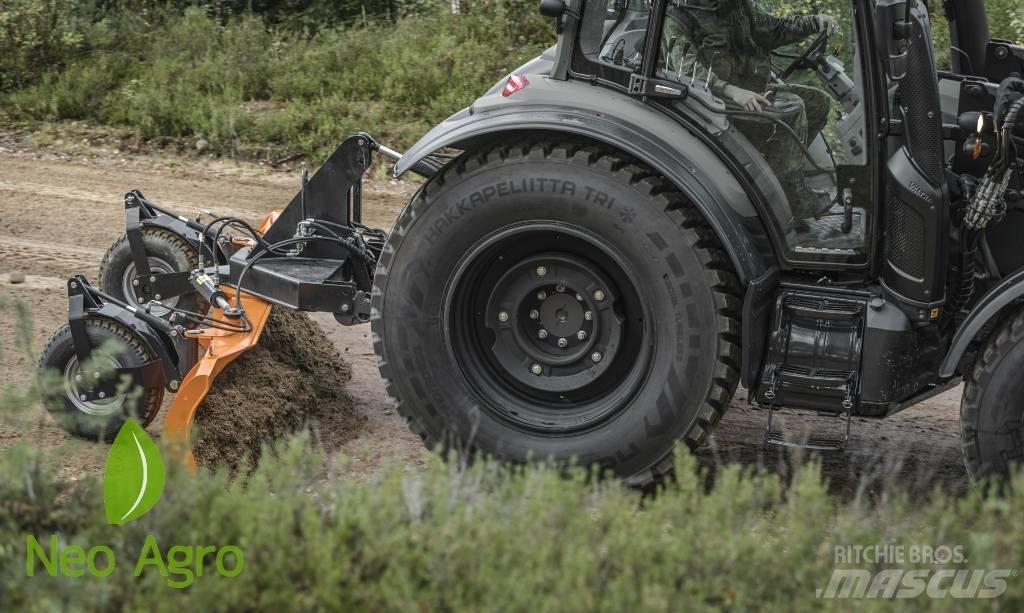

FMG Tractor Grader Blades are designed for professional use for removing slush, ice and snow in wintertime and for levelling gravel roads in summertime. To achieve good grip with the surface, FMG grader blades are equipped with patented hydraulic pressure control, which enables you to transfer the tractor weight to the blade. When fitted with a stinger blade, graders can even replace big road maintenance machinery. Grader blades are attached to the 3-point linkage of an agricultural tractor, making then easy to begin using. The adjustable balancing wheels maintain an even working depth, while the hydraulic pressure control reduces vibrations. FMG grader blades are available with an even blade (standard), perforated blade* and stinger blade*. Extension wings* and cylinders for downgrade adjustment* are also available as optional equipment. Technical specifications Model Width Height Extension wing Working width Turning angle Weight RAP245 245 cm 60 cm 25 cm 215-245 cm (305*) 28° 640 kg RAP275 275 cm 60 cm 25 cm 245-275 cm (335*) 28° 650 kg RAP300 300 cm 60 cm 25 cm 270-300 cm (360*) 28° 680 kg
