SCM minimax fs 41es

Cena bez DPH

Compnay LOGO
Images4
SCM minimax fs 41es Cestné frézy
SCM minimax fs 41es Cestné frézy
SCM minimax fs 41es Cestné frézy
FavoriteObľúbené
sharePodiel
Save searchUložiť vyhľadávanie
Tlač

INFO

Kategória
Cestné frézy
Značka / model
SCM minimax fs 41es
Stav
Použité
Umiestnenie stroja
Langley, British Columbia
Krajina
Kanada
Mascus ID
2D8CBB82

INFORMÁCIE O CENE

Zvoliť menu

PODROBNOSTI

Skladové č.
90119
Ďalšie informácie

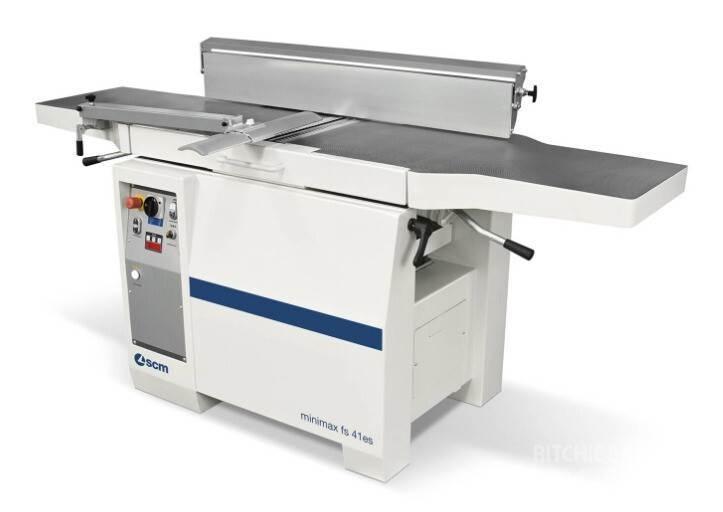

minimax fs 41es Surfacing-Thicknessing Planer w/ Xylent Spiralknife Cutterblock Title: minimax fs 41es Surfacing-Thicknessing Planer w/ Xylent Spiralknife Cutterblock SKU: 90119 Model: minimax fs 41es Condition: New GeneralHorsepower:4.8hp Max. Workpiece Width:410 mm / 16.14" Max. Workpiece Thickness:240 mm / 9.45" Type:Xylent ElectricalVoltage:230volts Phase:Single-phase Made In: ITALY Dimensions: 3.64 (H) x 48.40 (W) x 86.60 (L) inches ** Combination machine of Planer, Jointer Xylent Spiralknife Cutterblock with 3 Series of Knives Complete With: - 95 mm diameter cutterblock - No. 66 standard knives, 15x15x2.5 mm with 4 self-locking and self-centering screw knives - No. 1 dynamometric key for the correct and safe use of the locking - No. 2 inserts for the dynamometric key Max. Stock Removal: 5 mm Surfacing Tables Total Length: 2200 mm Thicknessing Table Dimensions: 410 x 775 mm Feed Speeds on Thicknesser: 6 / 12 m/min Min. / Max. Working Height on Thicknesser: 3 / 240 mm Min. Working Length on Thicknesser: 180 mm Exhaust Hoods Diameter: 120 mm Standard Equipment - Surface planer tables with simultaneous opening - Dedicated surface planer fence (dimensions 1200 x 150 mm) - Thicknessing table lifting by means of 4 columns dust protected - Helicoidal thicknesser infeed roller - Sandblasted steel thicknesser outfeed roller - Pre-setting for mortiser - Mechanical readout (1/10 mm) for thicknessing table height Additional Features - Rubber-coated feed roller on thicknesser outfeed - Xylent maintenance kit - 10 spare inserts kit (15x15x2.5) for Xylent spindle - Wheels for machine movement - Self-braking motor - Triple Wall - Delivery Ex Factory [PDF Brochure](... Footprints](...Zobraziť ďalšie

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Kanada
