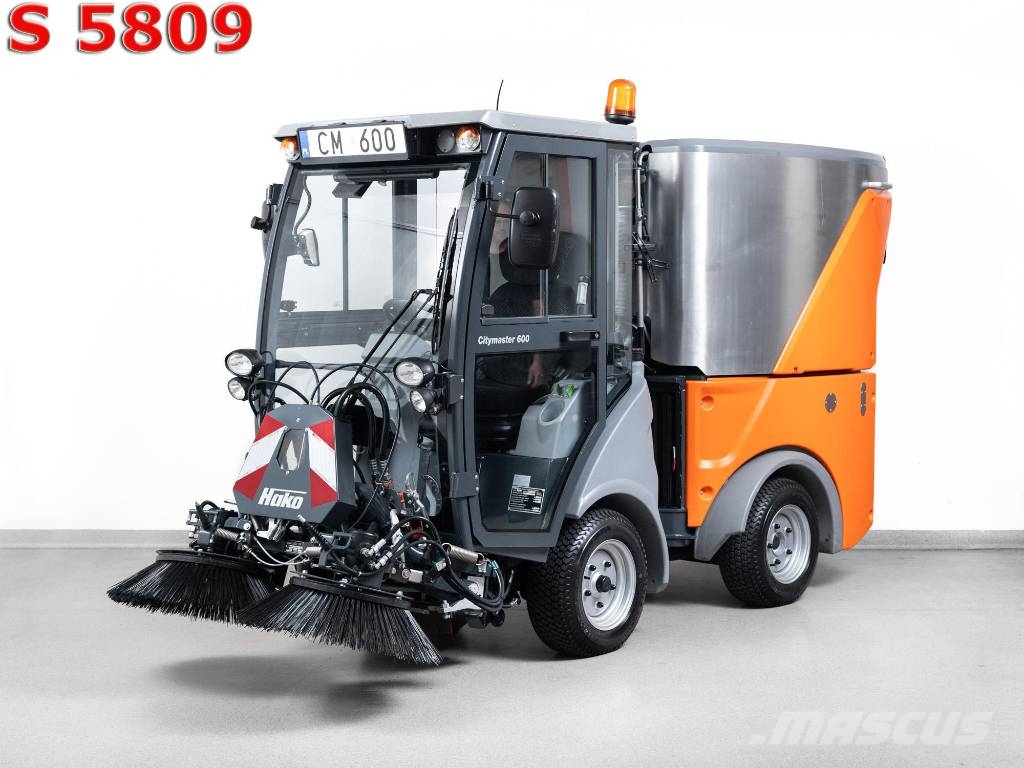

Hako Citymaster 600 Road Sweeper Diesel

36




































1 / 36
Tlač
INFO
Kategória
Zametacie stroje
Značka / model
Hako Citymaster 600 Road Sweeper Diesel
Rok výroby
2014
Hodiny prevádzky
179 h
Stav
Použité
Krajina
Poľsko
Všeobecná úroveň
Mascus ID
51FAFA60
INFORMÁCIE O CENE
Zvoliť menu
Price
PODROBNOSTI
Typ pohonu
Naftový
Skladové č.
S5809
Pracovná šírka
389 m
Hrubá hmotnosť
2 200 kg
Výkon motora
24,2 kW (32,9 hp)
Výrobca motora
Yanmar
Druh náhonu
Hydraulický
Handling
Kabína
Riadenie
Articulated Steer
Maximálna rýchlosť
25 km/h
Transportné rozmery (DxŠxV)
3899 x 1380 x 2269 mm
Značka pneumatík
KENDA
Vyrobené v štáte
Nemecko
Príslušenstvo
Vysokotlakové čistenie
Kropicí zariadenie
Ďalšie informácie
HAKO CITYMASTER 600 4x4 MULTIFUNCTIONAL MUNICIPAL STREET SWEEPER (2014) – EXCELLENT CONDITION + MANUAL SUCTION HOSE + PRESSURE WASHER
INSTALLED EQUIPMENT:
Dual-brush sweeping system – Equipped with NEW, stiff PPL 1.8 brushes reinforced with steel wire, ideal for removing dirt from public roads, parking lots, and pathways. Hydraulic controls inside the cab allow for an adjustable working width ranging from 1380 mm to 1800 mm, while an integrated spray system binds loose debris and prevents it from becoming airborne.
Multifunctional hopper – A versatile 600-liter capacity hopper, constructed from an aluminum alloy resistant to water (including saltwater), is suitable for a wide range of tasks, such as collecting debris from sweeping, grass clippings, or leaves. The hopper can be filled to its full capacity, and emptying is simple thanks to a hydraulic lifting mechanism that raises it to the desired height.
Manual suction hose – A Ø125 mm suction hose, mounted on a movable boom, functions like a vacuum cleaner—perfect for collecting leaves or smaller waste items, such as packaging and bottles. Built-in high-pressure washer – located at the rear of the machine and equipped with a 10-meter hose, this washer allows for high-pressure cleaning of various surfaces, ranging from asphalt and paving stones to walls and structural elements.
Work and spot lighting – Includes full road-legal lighting for travel in public areas, with optional additional work-area lighting to improve operator comfort during twilight or in conditions of poor visibility.
Reversing alarm – enhances safety when operating in public spaces and on sidewalks. Windshield wiper with washer, Bluetooth/USB radio, warning beacon, horn, operator seat with mechanical height adjustment
TECHNICAL DATA:
Model: Citymaster 600
Year of manufacture: 2014
Sweeping module operating hours: 57 h
Total operating hours: 179 h
Working width: 1380 mm – 1880 mm
Debris hopper capacity: 600 l / 500 kg
Clean water tank capacity: 150 l
Net weight: 1380 kg
Gross vehicle weight rating (GVWR): 2200 kg
DRIVETRAIN:
Engine: Yanmar 3TNV88C-ZMHW – 1642 cc – Diesel
Fuel tank capacity (l): 41
Number of cylinders: 3
Power: 24.2 kW (32.91 hp)
Engine speed: 2630 rpm (max) / 1900 rpm (Eco)
Torque: 104.8 Nm
Travel speed (forward/reverse): 25 km/h / 10 km/h
Gradeability: 25%
Hydraulic oil tank capacity: 35 l
Hydraulic oil type: HVLP 46
DIMENSIONS:
Length: 3899 mm
Width: 1090 mm
Width with brushes in transport position: 1380 mm
Height: 2269 mm INCLUDED:
REFURBISHED suction nozzle, complete with new rubber skirts and a new suction hose leading to the hopper
Pressure washer with accessories: spray gun + 500mm lance + power nozzle + 10m high-pressure hose
NEW 4m suction hose for the handheld vacuum attachment (Ø125mm)
NEW side brushes (PPL 1.8 + steel wire) (2x)
NEW KENDA 23X8.5-12 10PR TL E K500 Super Turf tires (4x)
NEW 12V 71Ah starter battery
NEW air, fuel, and oil filters, including a full oil service
Windshield wiper with washer, Bluetooth/USB radio, warning beacon, horn, and operator seat with mechanical height adjustment
A full gallery of 58 photos is available upon request.
